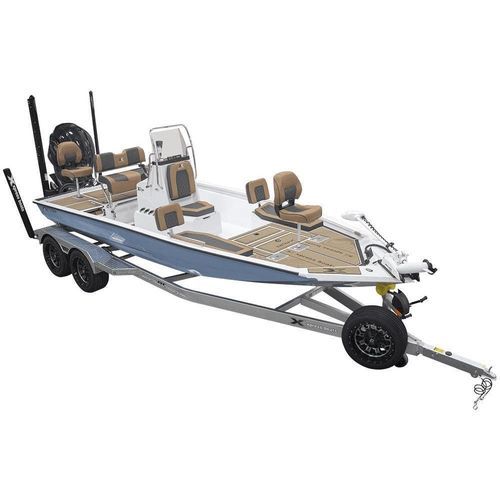

Outboard bay boat XR21B

gasolineplaning hullopen

Overview
The Xpress XR21B is a dedicated bay boat designed for serious anglers and family use. Featuring the XR Hyper‑Lift all‑welded aluminum hull, the XR21B combines shallow‑water performance, fast hole shots and a stable, dry ride for varied offshore and nearshore activities. Layout and storage are optimized for fishing—large casting decks, built‑in rod boxes and an aerated livewell—while seating and open space accommodate family cruising and watersports.

Standard features

• XR Hyper‑Lift Hull
• All‑Welded Construction
• Longitudinal Rib Construction
• Unibody Injected Foam Construction
• White Paint with Xtreme Coat Liner
• SeaDek Console Top
• SeaDek Step Pad on Bow
• Dash Panel with Digital Switching
• Logo Badge
• Lights in Livewell and Rod Boxes
• Tackle Storage Behind Console Backrest
• SeaDek Pads in Rod Boxes
• Center Console with Toekick Feature
• 3 Pedestal Bases Across Front Deck
• 2 Fold Down Fishing Seats with 13" Extensions
• 2 Built‑in Lockable Rod Boxes
• 6 Gauge Trolling Motor Harness
• Stainless Leaning Post without Foot Rest
• Stainless Steering Wheel with Knob
• Removable Backrest with Bow Cushions
• Large Bay Center Console with Baitwell, Fold Down Grabrail, Removable Windshield, Seat Cushion & Back‑Rest Cushion
• Auto Bilge Pump
• Aerated Livewell in Front Deck
• Remote Battery Switch
• Thru Transom Hydraulic Hose Fittings
• 8 Stainless Steel Rod Holders on Console
• 2 Stainless Steel Cup Holders on Console
• 2 Rear Deck Jump Seats
• Latches for Jump Seat Lids
• 3 Bank Charger
• Stainless Floor Drain Covers
• Humminbird Xplore 9 CMSI+
• Minn Kota Riptide 80WR
• Trolling Motor Slide Bracket & Plug
• Running Lights
• Uflex Hydraulic Steering (Greater than 150HP)
• 10" Jack Plate
• BackTrack 6" Frame Xtreme Trailer (Includes 18" Aluminum Spare Tire & Mount)

Options

• Console: AM/FM Radio with Bluetooth & Speakers; Wet Sounds Premium Sound System – 2 Speakers; Wet Sounds Premium Sound with RGB Under Rail Lights; Pre‑Rig Binnacle Mount Control Box with Cables
• Construction: Reinforced Floor for T‑Top
• Graphs: Garmin; Humminbird
• Hardware: High Pressure Wash Down Station
• Jack Plate: 10" Jack Plate to 10" Hydraulic Jack Plate Upgrade
• Ladder: Permanent Ladder
• Paint: 2 Tone Upgrade From Standard (Solid Hull Only); Painted Console (Except Gulf Sand & White)
• Prop: Upgrade to PowerTech SS Large Hub Prop; Upgrade to Yamaha SS Large Hub Prop
• SeaDek: SeaDek Liner for XR‑Bay
• Seat: Upgrade To SS Leaning Post with Backrest & Footrest from SS Leaning Post; Exchange Fold Down Seat for Euro Style Seat (Each); Exchange Fold Down for Aero‑X Mesh Seat; Exchange Euro for Aero‑X Mesh Seat
• Shallow Water Anchors: MinnKota Raptor; Power‑Pole Blade
• Steering: Upgrade Uflex to SeaStar
• Trolling Motors: Garmin; Minn Kota; Power‑Pole Move
• BackTrack Trailer Options: Brakes on Second Axle of Tandem

Packages

• Saltwater Trailer Package: Composite Bunk Covers and Upgraded Bow Roller
• Appearance Package X‑Bass (Must upgrade to Euro Fish Seat): Custom SeaDek Liner, Matching Seat Trim, and Matching Graphics. Available in Dark Grey/Lime, Dark Grey/Red, and Dark Grey/Blue.

Pricing & model info
All‑new 2026 model year; Boat model: XR21B; Typical shown boat may include optional SeaDek and equipment; Nationally advertised price does not include TTL, freight and rigging.

Technical specifications

• Model: XR21B
• Length: 21 ft 2 in
• Bottom: 67 in
• Beam: 93 in
• Sides: 22 in
• Transom Height: 22 in
• Fuel Tank Capacity: 36 gal.
• Approximate Weight: 1,865 lb.
• Max Wt./Per/Mo/GR: 1,830 lb.
• Total Wt. Per Cap: 7 / 965 lb.
• Aluminum – 5052 Gauge: 0.125
• Maximum HP: 200
• Overall Package Length: 28 ft 4 in
• BackTrack Trailer Model: AW21LE
