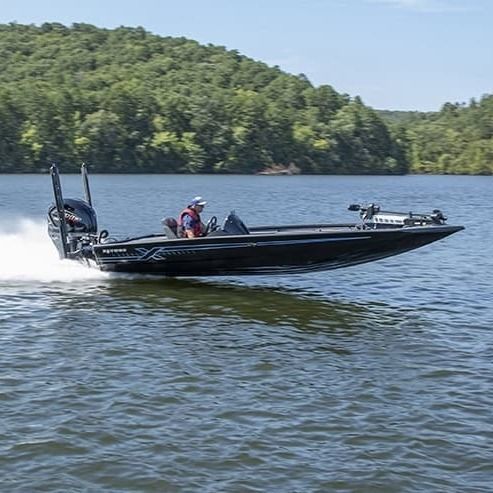

Outboard bass boat XR21

gasolineplaning hullopen

Overview
The Xpress XR21 is a tournament-focused bass boat designed for speed, handling and angler functionality. Featuring the XR Hyper-Lift hull and an all-welded aluminum unibody, the XR21 delivers fast hole-shots, precise handling and durable structural integrity. Engine options include high-performance Yamaha outboards. Deck layout and storage are optimized for fishing operations, with aerated livewells, extensive rod and tackle storage and non-skid SeaDek surfaces.

Standard Features

• XR Hyper-Lift Hull
• All-welded aluminum construction
• Longitudinal rib and unibody injected foam construction
• Full front casting deck with SeaDek non-skid
• Charcoal paint and Xtreme Coat liner
• X-Wing fiberglass console with graph recess and tinted windshield
• Spaghetti matting in front deck storage
• Cockpit floor cupholders and coin box with phone charger
• Retractable rod straps and tackle organizer in center storage
• Lift arms on lids, slam latches on livewell lids
• SeaDek liner with floor & accent kit, lid sound dampeners
• Recessed trolling motor foot well and 6-gauge trolling motor harness
• Remote battery switch and dual blinker trim
• Pro livewell oxygenator, recirculating livewell in rear deck with divider
• Bucket driver and passenger seats with storage; seat box with storage
• Humminbird Xplore 9 CMSI+ flush mounted; high-speed transducer with splitter cable
• Minn Kota Ultrex 80/MDI/MR 52” and Minn Kota 3-bank charger
• 10” hydraulic jack plate; digital switches; tach, trim, fuel and water PSI gauges
• BackTrack 6” Frame Xtreme trailer (BackTrack AW21LE) including 18” aluminum spare and mount

Options

• Graph units: Garmin, Humminbird
• Hardware: Kong bow graph mount
• Prop upgrade: Yamaha SS large hub prop
• Seat exchanges: Euro fish seat, Euro style, Aero-X mesh options
• Shallow water anchors: MinnKota Raptor, Power-Pole Blade
• Trolling motors: Garmin, Minn Kota, Power-Pole Move
• BackTrack trailer option: brakes on second axle of tandem

Packages

• Appearance Package XR-Bass: custom SeaDek liner, matching seat trim and graphics. Available Dark Grey/Lime, Dark Grey/Red, Dark Grey/Blue. (Requires upgrade to Euro fish seat.)

Available Colors

• Metallic Charcoal
• Thunderstorm Grey (and Thunderstorm variations)

SeaDek Options

• XProBass SeaDek Dark Grey with Lime
• XProBass SeaDek Dark Grey with Red
• XProBass SeaDek Dark Grey with Blue
• SeaDek Dark Grey with Black
• SeaDek Cappuccino with Black

Images & Media Notes
The product presentation includes extensive photographic galleries (exterior and detail images) and an MP4 header video demonstrating the 2026 XR21.

Technical specifications

• Model: XR21
• Length: 21'2"
• Bottom width: 67"
• Beam: 93"
• Sides: 22"
• Transom height: 22"
• Fuel tank capacity: 47 gal.
• Approximate weight (boat): 1,580 lb.
• Maximum recommended weight (boat load): 1,800 lb.
• Passenger capacity / weight per cap: 4 / 775 lb.
• Hull material / alloy: Aluminum 5052, gauge 0.125
• Maximum horsepower: 250 HP
• Overall package length (with trailer & engine): 28'4"
• Trailer model (factory pairing): BackTrack AW21LE
