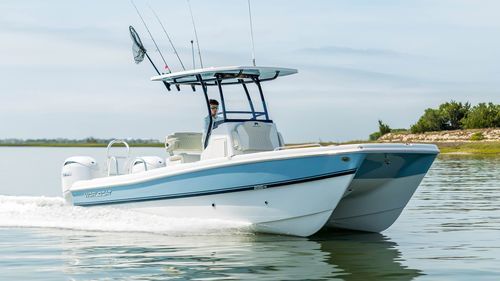

Center console catamaran 235HB

outboardhybridtwin-engine

Short description
23' hybrid catamaran center-console fishing boat built for inshore and offshore operation. 8'6" beam, 9" draft, capacity for up to 10 people, integrated livewell and insulated forward fishboxes.

Overview

• Catamaran hull for stable handling and shallow-water access.
• Spacious cockpit and forward seating with large insulated fishboxes and overboard discharge.
• 20-gallon lighted livewell and multiple storage compartments for tackle and gear.
• Designed for fishing as primary function with capacity for cruising, diving and watersports.

Key callouts

• Offshore-capable — configured to run open water safely with appropriate engine packages.
• Shallow draft access — 9" draft enables access to flats and shallow fishing grounds.
• Low profile and large casting areas — optimized for inshore/nearshore fishability.
• High payload — accommodates up to 10 people plus equipment for multipurpose use.

Standard Features
Hull

• Self-bailing, non-skid fiberglass cockpit liner
• Heavy-duty rub rail with stainless steel insert
• Below-deck rigging tubes for electronics and additional batteries

Bow

• Lounger with 310 qt storage (Shurhold 5 gal bucket base)
• Port and starboard 170 qt insulated fishboxes with overboard discharge pump (aft)
• Bow seating for 5 adults with integrated grab rails
• Through-bolted stainless bow eye
• (7) Through-bolted stainless 8” cleats on deck
• Trolling motor ready
• (2) Combo rod holders
• (2) XL tumbler drink cupholders for console lounger; (2) standard drink holders for console lounger

Helm

• Fiberglass T-top with spreader light
• Hydraulic tilt steering; dual ram hydraulic steering
• Acrylic windshield
• Leaning post with rocket launchers, YETI cooler, under-seat storage and 2 cup holders
• 13.5” stainless steering wheel with power knob
• Single Garmin GPSMAP 1243xsv 12” multi-touch chartplotter/sonar & ICOM M330G VHF
• Premium marine entertainment system with (4) JL Audio speakers & Bluetooth
• Marine grade switch panel with waterproof switches
• Raw water washdown
• 1-shelf storage system under helm; recessed tray in dash brow; 4-tray tackle storage

Stern

• (2) Gunwale-mounted stainless steel rod holders
• (2) Combo rod holders
• Cockpit horizontal rod racks for 4 rods
• Aft deck non-skid casting platform
• Flip-up aft seat
• 20 gal livewell, lighted with overboard drain and fiberglass lid
• Dual batteries with on/off parallel switch
• (2) 44.5 gal polyethylene fuel tanks
• (2) Fuel/water filters and (2) fuel fills with internal vents
• (2) 1100-GPH automatic bilge pumps
• Commercial-grade dive ladder & swim platform

Optional features
Engine packages

• Yamaha T/F115XB Package (White)
• Yamaha F150XSA2 engines (White)

Hull colors / finishes

• Arniston Gray, Ice Blue, Coastal Blue, Shackleford Sand, Annapolis Blue
• Available in full-hull or two-tone hull color

Hardtop underside colors

• Arniston Gray, Ice Blue, Coastal Blue, Shackleford Sand, Annapolis Blue

Bootstriping

• Stardust (top) & Black (bottom); Dark Red; White; Black; Dark Blue; Stardust (top/bottom); Teal

Accessories

• Edson 14.5” satin finish wheel with power knob
• Fresh water shower in transom (10 gallon capacity)
• Quick release fender holders (4)
• Forward-facing removable bow backrest
• Ski tow
• Removable bow table

Electronics

• Additional 12” Garmin display
• Stereo upgrade (400W amp and 6.5” M6 series speakers)

Outriggers

• GEMLUX Deluxe outrigger system with 18’ collapsible hybrid poles (optional)

Specifications

• Length: 22' 7"
• Beam: 8' 6"
• Fuel capacity: 89 gal
• Dry weight w/power (approx.): 5,100 lbs
• Draft: 9"
• Max HP rating: 300 HP (2 x 150)
• Standard livewell: 20 gal (lighted)
• Forward fishbox capacity (per side): 170 qt insulated
• Fuel tanks: (2) 44.5 gal polyethylene
• Bilge pumps: (2) 1100 GPH automatic
