Inboard small boat Scout Widebody

wheelhousewhitewateraluminum

Overview

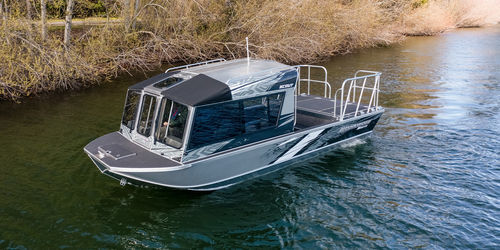

Born from Wooldridge’s whitewater DNA, the Scout Widebody is a jet boat designed for technical rivers, shallow water and canyon runs. It adapts the proven Canyon hull into a lower-profile, lighter widebody platform that increases deck area and carrying capacity while retaining responsiveness and maneuverability in fast-flowing conditions. Available in 21', 23' and 25' lengths, configurations include a three-piece walk-through windshield, cabin or open center console layout. Common options: stick steering and a raised Idaho deck over the engine for extra storage. Powertrain choices include KEM Chevy 6.2DI or optional supercharged 6.2 LT4 paired with Hamilton 214 or larger jet pumps and turbo impellers.

Standard Features
Hull & Structure

• Limited lifetime hull warranty to original buyer
• Wooldridge Full Support Structure System
• Reinforced impact chine
• Extended bottom trim plate
• .190" transom and bottom
• .500" delta pad
• Meets USCG standards
• Welded Idaho deck in rear with single aluminum lid, gas assist arms, and full sound deadening
• Cabin with 3-piece windshield, sliding side windows, side trays, LED dome lights, welded grab-handles, and removable canvas panels above driver and passenger seats
• Welded bow and stern eyes
• Dual drain holes and plugs
• Transducer bracket

Interior & Exterior Features

• Diamond-plate swim step covering jet on transom
• Diamond-plate aluminum floors
• Full-length welded side trays with carpet
• Rod grippers in side trays
• Stand-up gunnels with toe kick
• UV-treated vinyl exterior graphic on hull sides
• Walk-around gunnels with non-slip surface
• Two all-welded aluminum lockable dry storage boxes with Navi High-Back seats
• Large three-piece walk-through windshield
• Port-side dash with locking glovebox

Power & Performance

• KEM 6.2DI Chevy Engine (standard)
• Hamilton 214 Jet with turbo impeller (standard configuration)
• Fresh water closed-loop cooling system
• Bilge blower

Fuel System

• Built-in, above-floor, 75-gallon aluminum baffled step-tank
• Secondary fuel feed off tank for kicker fuel
• Fuel / water separator

Helm & Electrical

• 1,000 MCA battery with box, tray and strap
• 6-switch panel with sealed fuses
• Garmin 743xsv full engine instrumentation display
• LED navigation / running lights
• 12V power plug on dash
• Dual USB / USB-C charger plug on dash
• 1,250 GPH bilge pump
• Electric horn
• Windshield wiper for driver and passenger side
• All-welded dashboard with cable steering

Performance Test Results (21' SCOUT WIDEBODY with 6.2 LT4 & HAMILTON 214)
RPM | MPH | GPH | MPG
3000 | 32 | 13 | 2.4
3500 | 42 | 20 | 2.1
4000 | 50 | 33 | 1.5
4500 | 58 | 44 | 1.3
4710WOT | 61 | 52 | 1.1

Technical specifications

• Model name: Scout Widebody
• Manufacturer: Wooldridge
• Available lengths: 21', 23', 25'
• Widebody configuration with 7' bottom for increased beam and deck space
• Hull construction highlights: .190" transom and bottom, .500" delta pad, reinforced impact chine, extended bottom trim plate
• Rear welded Idaho deck with single aluminum lid, gas assist arms, and sound deadening
• Cabin configuration: 3-piece windshield, sliding side windows, LED dome lights, removable canvas panels
• Standard engine: KEM 6.2DI Chevy Engine; optional upgrade to supercharged 6.2 LT4
• Jet options: Hamilton 214 jet with turbo impeller (compatible with larger jet pumps and turbo impellers)
• Cooling: Fresh water closed-loop cooling system
• Fuel capacity & system: 75-gallon baffled aluminum step-tank above floor; secondary feed for kicker; fuel/water separator
• Electrical: 1,000 MCA battery; Garmin 743xsv instrumentation; 6-switch panel with sealed fuses; dual USB/USB-C; 12V dash plug
• Bilge: 1,250 GPH bilge pump and bilge blower
• Standard safety/fitments: Welded bow & stern eyes, dual drain holes and plugs, transducer bracket, meets USCG standards
