multi-component paint spraying machine / shipyard

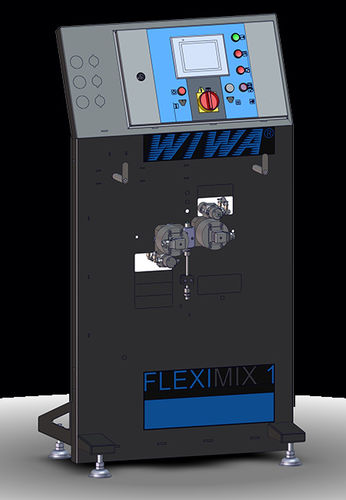

FLEXIMIX 1 ND
With the clearly arranged keys and the large, color touchscreen display on the control panel, operation of the unit is quick and easy-to-learn.
The explosion-proof remote control unit allows operation of the FLEXIMIX from explosion-protected areas. All control elements are located centrally for easy access. To measure material volume, the unit can be equipped with gear-tooth or Coriolis flow sensors for dosing of 2K or 3K materials.
All parts of the FLEXIMIX 1 ND which contact material are rust-proof, so that even water-based varnishes can be processed without problem. Smaller automatic valves were developed specially for the new WIWA FLEXIMIX 1 ND, providing a more compact mixing unit. The valves are suitable for operation pressures up to 25 bar.
Air flush kit
Acoustic error alarm
Gun flushing device
Remote control in ATEX
Atomizing air sensor
Atomizing air shut-off
Further improvements to the FLEXIMIX control system include an upgrade to multiple flush programs and the ability to attach two mixing units to the unit. This is especially beneficial when processing PU and EP or other incompatible materials with a single unit. This new control system will be standard for all FLEXIMIX units in the future.
