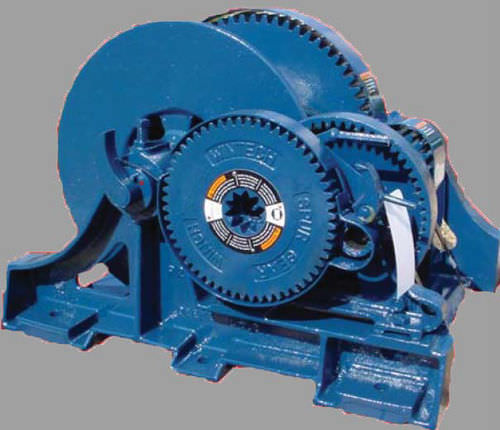

Ship winch BW Series

storagemanual

Wintech's BW-Series Hand Winches come in 10 and 15 Ton capacities. The "free standing" BW Series hand winch requires no vertical side clearance for operation and can be installed, "as is", ready to go. These winches have an optional disc brake handle which incorporates a "Weston" style load brake to automatically hold the rated load in lifting applications. Standard Features: Cast steel frame, drum and ring gear Replaceable bronze bushings One piece fully adjustable 14" long steel operating handle with pinion Two spring loaded holding dogs with release handles Three speed gear change: 4:1 (unloaded) 19:1 (unloaded) 109:1 (with load) Hand operated, adjustable holding brake Gear covers
