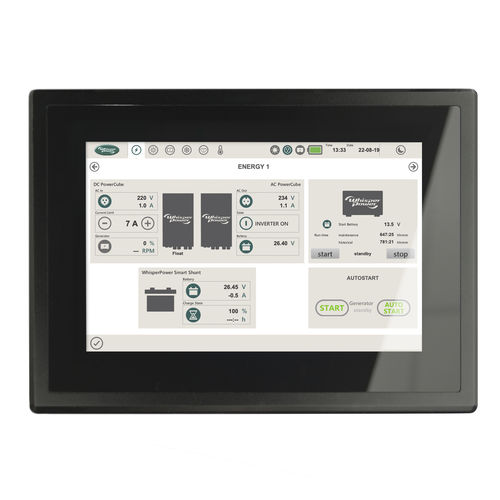

Ship monitoring and control panel WhisperTouch

touch screen

Monitoring and Control - In a single glance! Our WhisperTouch can be connected directly to the WPC Power Centre (BSI and RS232 interface required) and the WhisperPower generator (DDC functionality required), while no WPCI Interface needed. Functionality: Start- and stop of the generator, generator status information, time-to-service etc. Monitoring and control of the AC power system Shore power/ power sharing control by selecting the intensity of the charge current Monitoring and control of the DC power system Advanced battery monitoring of the service battery including ‘time remaining’ TECHNICAL SPECIFICATIONS Input voltage - 10-30 VDC Power consumption - 100mA to 240 mA Dimensions WhisperTouch 5" (lxw) - 110 mm x 150 mm Dimensions WhisperTouch 7" (lxw) - 139 mm x 207 mm Installation depth WhisperTouch 5" - 24 mm Installation depth WhisperTouch 7" - 25.5 mm Weight WhisperTouch 5" - 250 gr Weight WhisperTouch 7" - 300 gr Operating temperature - -25°C..55°C Installation advice - For interior use Scope of supply - Touch panel, (optional for WPC: RS232 connection device, RJ-45 cable), installation manual Compatible - Naviop, Yachtcontrol, Garmin, Trigentic EmpirBus
