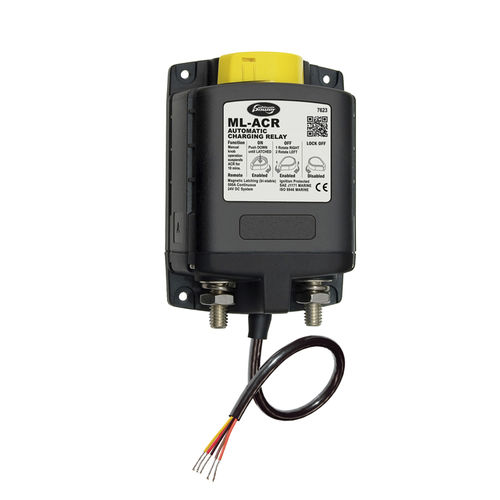

Electromagnetic battery switch 50214732

GENERAL Model type - 24 VDC Remote Magnetic Latch Battery Switch Circuit type - ON-OFF... bi stable INPUT Battery input - 1 Switch Positions - 2 Manual overide - Locked off/on I 10 Cranking rating 10 sec - 2500A I 60 Cranking rating 1 min - 1100A I 300 Cintermittent rating 5 min - 700A I C continue rating - 500A Vmno Voltage maxium Operation - 32VDC Control Circuit Voltage - 20.2..32.9VDC Operatiuon current continous - 0 mA Operation current when charging - 4 A Remote Control switch when charging - 100 mA Automatically combines battery banks when senses voltage levels are: - - Automatically isolates battery banks when sensed voltage levels are: - Below 12.75V for 30 sec. GENERAL Ambient operation temperature - -20ºC … +40ºC Storage temperature - -25ºC … +85ºC Operating humidity - 95%, non condens Live current switching - 100.000 cyles MECHANICAL Connections terminal stud - M10 (3/8’-.16) Connections stud lenght - 23 mm Maximum terminal Stud Torque - 15.5 NM (140 in-lb) Terminal material - tin-plated copper Enclosure width - 95.25 mm Enclosure height - 138.94 mm Enclosure depth - 51.56 mm Weight - 0.8 kg Drilling mounting centers - 114.3mm * 76.20mm Mounting srews - 4 mm Ingress Protection Class - IP66 Enclosure Colour - RAL9011 Graphite Black Cable clearance - 28.4 mm (1.12’)
