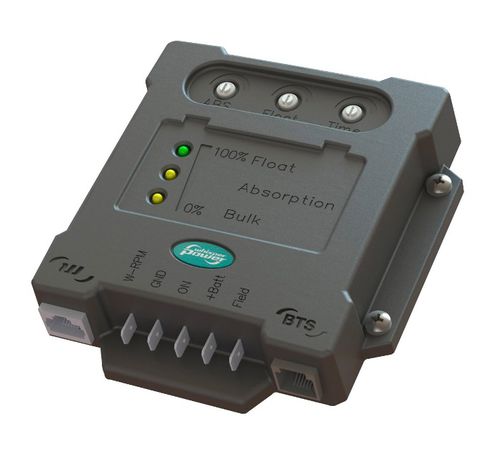

Charge regulator WP-ACR

GENERAL Nominal operation voltage - 12 VDC Temperature sensor - Yes, incl. 6 m cable Cable harness - Yes, length 1.5 m Connection plug regulator/alternator - WhisperPower Alternator Alternator type - WhisperPower, low voltage, brush type ELECTRICAL Charge voltage - Absorption - 14.25 VDC Charge voltage - Float - 13.25 VDC Absorption Voltage range - 13..15 VDC Float Voltage range - 13..13.9 VDC Absorption time - 0h - 4.5h Temperature Compensation - -60 mV / °C Rev Counter input - No/yes* Operation Temperature - -20 °C .. 80 °C SETTINGS/READ OUT Voltage settings - By trimmers on device Time settings - By trimmers on device Status read-out - LED’s MECHANICAL Dimensions [mm] [L x W x H] - 117 x 120 x 26,67 mm Dimensions [inch] [L x W x H] - 4,60 x 4,72 x 1,05 mm Weight [kg] - 0.4 Kg Packaging dimensions [L x W x H] - 205 x 180 x 160 mm Protection Degree - IP65 GENERAL Nominal operation voltage - 24 VDC Temperature sensor - Yes, incl. 6m cable Cable harness - Yes, length 1.5m Connection plug regulator/alternator - WhisperPower Alternator Alternator type - WhisperPower, low voltage, brush type ELECTRICAL Charge voltage - Absorption - 28.50 VDC Charge voltage - Float - 26.50 VDC Absorption Voltage range - 27 - 31 VDC Float Voltage range - 26 - 27.8 VDC Absorption time - 0h - 4.5h Temperature Compensation - -60 mV / °C Rev Counter input - No/yes* Operation Temperature - -20 °C .. 80 °C SETTINGS/READ OUT Voltage settings - By trimmers on device Time settings - By trimmers on device Status read-out - LED’s MECHANICAL Dimensions [mm] [L x W x H] - 117 x 120 x 26,67 mm Dimensions [inch] [L x W x H] - 4,60 x 4,72 x 1,05 mm Weight [kg] - 0.4 Kg Packaging dimensions [L x W x H] - 205 x 180 x 160 mm Protection Degree - IP65
