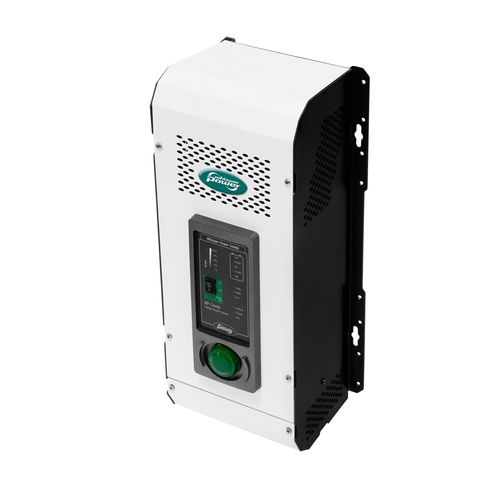

Voltage inverter-charger WP Combi
DCACmarine

voltage inverter-charger
voltage inverter-charger
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
AC
Application domain
marine
Other characteristics
battery
Voltage

12 V, 24 V

Power

2,000 W, 3,000 W

Description

INVERTER SPECIFICATIONS Inverter - True Sine Wave Nominal battery voltage - 12 VDC Input voltage range - 10..16VDC Power @ 25°C - 2000 W Continuous Power @ 40°C - 1800 W Power 1 min. @ 25°C - 2500 W Power 20 sec. @ 25°C - 3000 VA Maximum load - Fully protected up to short circuit Maximum a-symmetric load - 1000 VA Load detection (stand-by) - >15W Power factor - Up to 1 Efficiency (@ full load) - 88% Zero load power - <20 W Standby power (load search) - <5 W Output voltage - 230 VAC +/- 3% Output frequency - 50 Hz +/- 0.5% Harmonic distortion (voltage) - THD<3% Overload and short-circuit protection - Auto disconnect after 3 start attempts Overheat protection - Yes (the WP-Combi has to be restarted manually) BATTERY CHARGER SPECIFICATIONS Charge Characteristic - IUU Multi step Charge voltage - bulk - GEL 14.40 V / AGM 14.40 V / Open Lead 14.25 V / Traction 14.60 V Charge voltage - absorption - Gel 14.25 V / AGM 14.25 V / Open Lead 14.25 V / Traction 14.45 V Charge voltage - float - Gel 13.80 V / AGM 13.80 V / Open Lead 13.25 V / Traction 13.25 V Equalizing voltage (for 30 minutes) - 15.5 VDC Maximum charging current - Max. 80 A (adjustable) Temperature compensation - -30mV/°C (by external temperature sensor) Slave charger - 12 V / 3 A Power Factor Correction (PFC) - Yes Input voltage range - 194..250 Vac (UPS mode) 170..265 Vac (GEN mode) Input frequency range - 45..65 Hz (UPS mode) 40..70 Hz (GEN mode) Input current max - 30 A (protected by internal circuit breaker) Charging input current (max charging current @ 230Vac) - 4.5 A (adjustable) Transfer time - 10..15 ms (UPS mode) 2sec (GEN mode)
