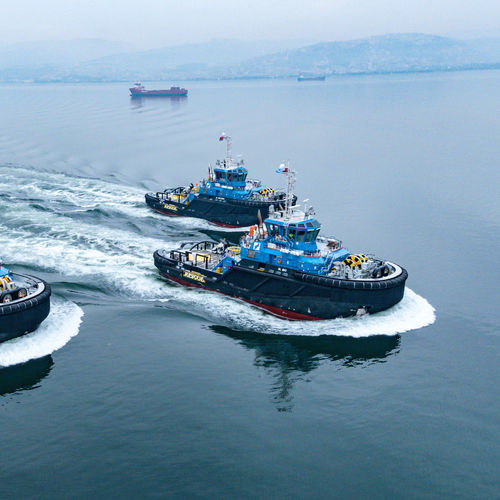

Tugboat tugboat RAstar 4200

Overview
High-performance terminal and escort tug hull form reduces roll amplitude and roll accelerations, improving safety and crew comfort during docking and escort operations at LNG terminals and similar installations. Designed to operate in sea-states with up to 3.0 m significant wave heights.

Applications

• Docking assistance and escort operations at LNG and petrochemical terminals
• Ship handling in confined waters and harbour manoeuvres
• Continuous operations in adverse sea conditions up to SS 3.0 m

Propulsion
3000 mm diameter CP or FP Azimuth Thrusters providing high manoeuvrability and precise station-keeping.

Generators
Minimum configuration: 3 x 410 ekW (sizing based on load analysis).

Fuel Capacity (m3)
353

GMDSS
A1-A2-A3

Key performance figures

• Bollard pull (max): 100 tonnes
• Length overall: 42.00 m
• Total installed power: 3000 BKW
• Maximum speed: 14.00 kts
• Beam: 16.00 m

Technical specifications

• Model: RAstar 4200
• Manufacturer / Brand: Uzmar
• Propulsion: 3000 mm diameter CP or FP Azimuth Thrusters
• Generators: Min. 3 x 410 ekW (based on load analysis)
• Fuel capacity: 353 m3
• GMDSS: A1-A2-A3
• Bollard pull (max): 100 tonnes
• Length overall: 42.00 m
• Total installed power: 3000 BKW
• Maximum speed: 14.00 knots
• Beam: 16.00 m
