Characteristics

Type
fishing trawler
Motor type
inboard
Other characteristics
aluminum
Length

14.9 m (48'10")

Description

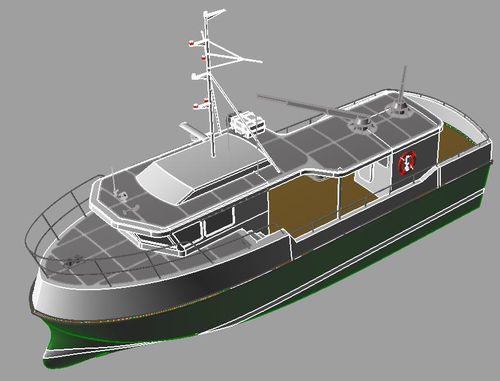

FRP hull (optional: marine grade aluminum) LOA 14,9 m BEAM Max 5.20 m Draft (by hull, maximum load) 1,58m Draft (maximum load) 2,12 m Displacement (full) up to 48000 kg Payload (max, with full tanks and fish storage) 32000 kg MAX SPEED 12 knots (up to 25 kn with a more powerful engine, without load) Crew 4 pax Engine: 300/385 hp(Volvo TAMD 121D, IVECO or Doosan) Reduction gear: Twin disc 509 Ratio: 3:1Ratio: 3:1 (or Doosan) AUXILIARY MAIN GENERATING SET 2 x Betamarine20kVA (or up to 130 kVa) The longlineris fully equipped with International standard marine equipment that responds to SOLAS-MED, COLREG, SMDSM (division 219-22), division 213 (pollution) and 211 for stability. The vessel is equipped with 2 split trawl winches of 120HP with 2100 capacity, 16.5mm DN wire and hauling speed of 1.5m/s. The vessel is also equipped with one fresh fish hold of 5.5 m3 (0?5°C), one frozen fish hold of 24m3 (?18°C) and a working area of 40m2. The vessel is equipped with 2 generators Beta Marine of 20kVA generating 380V, 220V and 24V for the LED lighting, A/C, the fishholdsand the hydraulic system. The vessel features a forward wheelhouse with accommodation below and fish holds amidships. 385-450 hpdiesel turning 50 inch 4-5 blade prop (twin disc MG5114 DC gearbox). Additional machinery includes two auxiliary engines for hydraulic and 240v power, bow thruster driven through the main engine gearbox PTO. The main task of such a vessel is preserving the fish in best class condition for best commercial prices. All fish catch operations are optimized for quick and safe work on deck.
