Double block RT100VH
fiddlecheekwith shackle

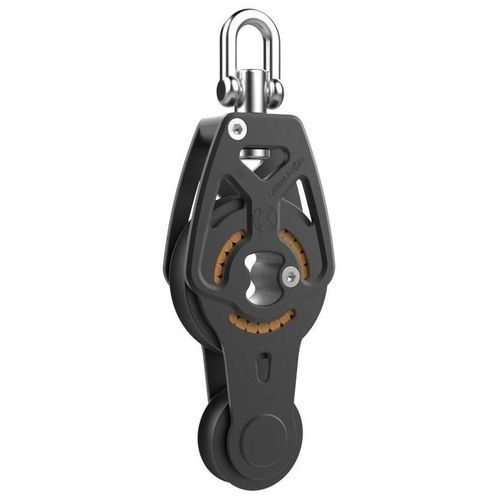

Double block - RT100VH - UBI MAIOR ITALIA - fiddle / cheek / with shackle
Double block - RT100VH - UBI MAIOR ITALIA - fiddle / cheek / with shackle
Add to favorites
Compare this product
Go to the UBI MAIOR ITALIA website for more information

Characteristics

Number of sheaves
double
Type
cheek, fiddle
Configuration
with shackle
Bearing type
roller bearing
Maximum line diameter
max. rope ø 16 mm
Application domain
for sailboats, for boat
Applications
sail
Material
aluminum
Working load

3,400 kg
(7,495.7 lb)

Breaking load

6,800 kg
(14,991.4 lb)

Weight

752 g
(27 oz)

Description

The RT100VH is a high-performance sailing block designed for demanding marine applications. It features a fiddle configuration with an aluminum body, torlon roller bearings, and a high-load shackle, ensuring durability and smooth operation under heavy loads.

Main Features
  • Fiddle block design for versatile rigging solutions
  • Constructed from robust aluminum for lightweight strength
  • Torlon roller bearings provide low friction and high load capacity
  • Equipped with a high-load shackle for secure attachment


Technical Specifications
  • Ø Sheave: 100mm
  • Shackle: 10HRmm
  • Max Ø Line: 16mm
  • Max Working Load: 3400Kg
  • Breaking Load: 6800Kg
  • Length: 297mm
  • Weight: 752g
