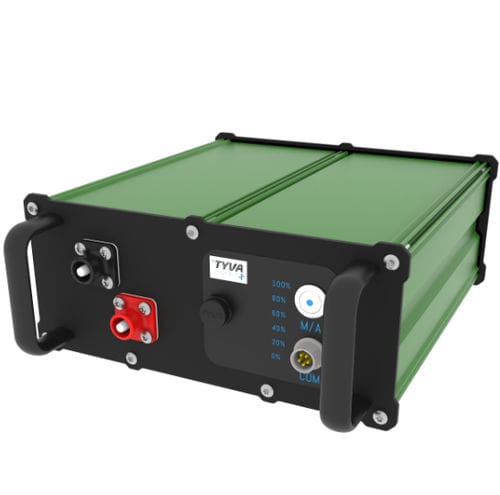

Boat battery Moduloo Ax & Bx

for AUVsfor ROVfor electric motors

Overview
The Moduloo Ax & Bx lithium battery range is engineered to deliver high energy density in compact, lightweight enclosures for mobile robotics, autonomous vehicles and other mobile applications. Modules are plug-and-play, can operate standalone or be connected in series and parallel to scale voltage and capacity according to integration constraints.

Versions

• Moduloo Ax: ultra-compact, lightweight modules for weight- and space-constrained applications (IP54 enclosure options).
• Moduloo Bx: higher-capacity, rackable and IP65-rated variants for harsher environments (up to ~2 kWh per module).

Key features

• Designed and manufactured in France.
• Certifications: RoHS, CE, UN 38.3 (transport compliant).
• Modular architecture enabling series/parallel connectivity and multiple front-panel options (A–D for non-rack; E–H for rack/blind-mate).
• Communication: CAN 2.0, SMBUS & I2C (model-dependent).
• Sustainability: compatible with TYVA Refill replaceable-cell technology for maintenance and refurbishment.
• Options: integrated thermal management, heaters, upgraded sealing and customized enclosures/front panels.

Integration & form factors
Plug-and-play modules are offered in standardized form factors to simplify integration: Ax: A5, A5+, A4+; Bx: Bx1, Bx2 and rack/blind-mate variants BxR1, BxR2. Front-panel choices include LCD, bargraph, handle, on/off button and combinations.

Standard Moduloo Ax — product lines (table)
Header: Part number | Config | Nominal energy | Nominal capacity | Charge voltage | Charge / Discharge max current | Nominal voltage | Data | Format | Dimensions (mm) | Weight
TYREB_LC_A5P_X_14V | 4S20P | 980 Wh | 67 Ah | 16.8 V | 25 A / 25 A | 14.6 V | SMBUS & I2C | A5+ | 208 x 220 x 77 | 4.8 kg
TYREB_LC_A4P_X_14V | 4S35P | 1710 Wh | 117 Ah | 16.8 V | 25 A / 25 A | 14.6 V | SMBUS & I2C | A4+ | 323 x 220 x 77 | 8.5 kg
TYREB_PR_A5B_X_25V | 7S10P | 860 Wh | 33.5 Ah | 29.4 V | 17 A / 80 A | 25.55 V | CAN 2.0 | A5 | 188 x 220 x 77 | 4.2 kg
TYREB_PR_A4P_X_25V | 7S20P | 1710 Wh | 67 Ah | 29.4 V | 34 A / 90 A | 25.55 V | CAN 2.0 | A4+ | 323 x 220 x 77 | 8.5 kg
TYREB_PR_A5B_X_51V | 14S5P | 860 Wh | 16.75 Ah | 58.8 V | 8.5 A / 40 A | 51.1 V | CAN 2.0 | A5 | 188 x 220 x 77 | 4.2 kg
TYREB_PR_A4P_X_51V | 14S10P | 1710 Wh | 33.5 Ah | 58.8 V | 17 A / 80 A | 51.1 V | CAN 2.0 | A4+ | 323 x 220 x 77 | 8.5 kg

Standard Moduloo Bx — product lines (table)
Header: Part number | Config | Nominal energy | Nominal capacity | Charge voltage | Charge / Discharge max current | Nominal voltage | Rackmount version | Dimensions (mm) | Weight
TYREB_PR_BX1_X_25V | 7S8P | 1022 Wh | 40 Ah | 29.4 V | 17 A / 80 A | 25.55 V | No | 239 x 239 x 103 | 7.5 kg
TYREB_PR_BXR1_X_25V | 7S8P | 1022 Wh | 40 Ah | 29.4 V | 17 A / 80 A | 25.55 V | Yes | 239 x 239 x 103 | 7.5 kg
TYREB_PR_BX1_X_51V | 14S4P | 1022 Wh | 20 Ah | 58.8 V | 8.5 A / 40 A | 51.1 V | No | 239 x 239 x 103 | 7.5 kg
TYREB_PR_BXR1_X_51V | 14S4P | 1022 Wh | 20 Ah | 58.8 V | 8.5 A / 40 A | 51.1 V | Yes | 239 x 239 x 103 | 7.5 kg
TYREB_PR_BX2_X_51V | 7S16P | 2044 Wh | 80 Ah | 29.4 V | 32 A / 60 A | 25.55 V | No | 396 x 239 x 103 | 12.7 kg
TYREB_PR_BXR2_X_51V | 7S16P | 2044 Wh | 80 Ah | 29.4 V | 32 A / 60 A | 25.55 V | Yes | 396 x 239 x 103 | 12.7 kg
TYREB_PR_BX2_X_51V (alt) | 14S8P | 2044 Wh | 40 Ah | 58.8 V | 17 A / 80 A | 51.1 V | No | 396 x 239 x 103 | 12.7 kg
TYREB_PR_BXR2_X_51V (alt) | 14S8P | 2044 Wh | 40 Ah | 58.8 V | 17 A / 80 A | 51.1 V | Yes | 396 x 239 x 103 | 12.7 kg

Derivatives & Custom engineering
Derivative and custom products are available: tailored voltages, capacities, discharge currents, HMI, DC/DC conversion, dedicated connectors, sub-assemblies and corepacks, integrated thermal management (heaters), upgraded sealing and bespoke enclosures/front panels. Engineering support for certification and logistics is provided.

Certifications & Compliance
RoHS certified
CE certified
UN 38.3 certified for safe transport

Communication & Compatibility
Supported protocols vary by model: CAN 2.0, SMBUS and I2C. Fully compatible with TYVA Refill replaceable-cell technology.

Technical specifications

• Nominal voltages: Ax available in 14 V, 25 V and 51 V; Bx available in 25 V and 51 V.
• Form factors: Ax A5, A5+, A4+; Bx Bx1, Bx2, BxR1, BxR2.
• Typical nominal energy per module: ~860 Wh up to ~2,044 Wh depending on configuration.
• Typical capacities: ~16.75 Ah up to 117 Ah depending on cell configuration.
• Max continuous / peak currents: examples range from 8.5 A up to 90 A depending on model.
• Dimensions & weights: A5 variants ~188 x 220 x 77 mm, 4.2–4.8 kg; A4+ ~323 x 220 x 77 mm, ~8.5 kg; Bx up to 396 x 239 x 103 mm and ~12.7 kg.
• Lifecycle: 700 to 5,000 cycles depending on temperature, depth of discharge and operating power.
• Ingress protection: Ax examples IP54; Bx examples IP65.
• Certifications: RoHS, CE, UN 38.3.
