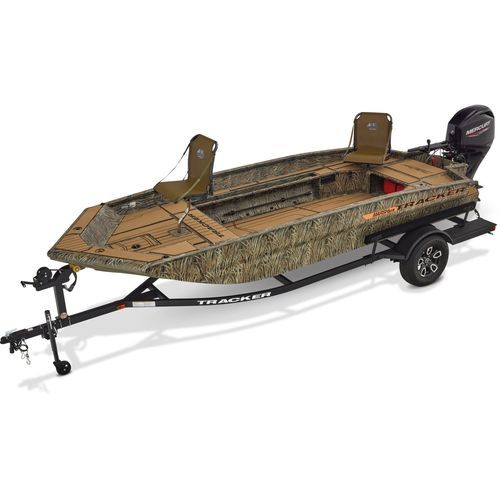

Outboard jon boat GRIZZLY® 1756 T MARSH

openfishinghunting

Overview
Purpose-built aluminum jon boat designed for fishing and waterfowl hunting with a spacious forward deck, lockable storage, and dry storage in the aft port seat pod. Interior features Sure Tread™ non-skid flooring and multiple tie-down points. The VERSATRACK® accessory channel provides flexible mounting options. 100% aluminum, wood-free construction with a 7° deadrise and icebreaker keel for a smoother, drier ride. Trailer included as standard; available in Forest Green or optional TrueTimber® camo.

Standard Features

• TRACKER® PROMISE factory warranty for aluminum boats
• NMMA® certified; flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
• Bow and stern eyes

Interior

• Spacious front deck optimized for fishing and hunting
• Bow and aft pedestal seat bases
• Recessed trolling motor pedal tray/day box in bow deck
• Lockable bow deck storage and oversized bow storage with 90° lid
• Port-side lockable gun box
• Angled aft bench seat with storage
• Sure Tread™ non-skid interior
• Floor- and rail-mounted tie-down points

Functional

• Exclusive VERSATRACK® accessory-mounting channel integrated in gunnels

Construction & Exterior

• 100% aluminum, wood-free construction
• Structurally aligned transom system with HD multi-chamber transom extrusion
• Icebreaker keel with keel-spine technology
• 7° deadrise for a smoother, drier ride
• Welded-in, foam-filled interior side walls for noise reduction and structural strength
• 3" (7.62 cm) Sch 40 bull nose bow
• Integrated spud pole tubes in bow cap and rear step pods
• Heavy-duty extruded aluminum gunnels, extruded bow chines and keel
• 2-piece, .125 5052 marine grade aluminum hull with pressed-in strakes for tracking stability
• Welded, drained rain channels for drier bow compartment storage
• 2" (5.08 cm) washout drain and plug

Electrical

• 800 GPH (3,028 LPH) bilge pump
• Rocker switches for navigation lights and bilge pump
• Pre-routed rigging tubes for accessories

Trailer

• Custom-fit single-axle trailer with powder coat and GALVASHIELD® corrosion and chip protection
• 14" (35.56 cm) aluminum wheels/tires with matching spare
• Hubs designed for quick and easy lubrication
• Pivot-up locking jack with swivel wheel
• Heavy-duty winch with nylon strap and bow safety strap
• Outboard motor support to reduce hull and transom stress during towing
• Heavy-duty upright load guides for centered loading
• Carpeted bunks, submersible lighting, nylon tie-down straps and safety cables supplied

Specifications

• Length: 5.33 m (17' 6")
• Beam: 1.98 m (6' 6")
• Bottom Width: 1.42 m (4' 8")
• Max. Recommended HP: 60 HP
• Fuel Capacity: 22.71 L (6 gal.)
• Max. Person Capacity: 4 persons
• Max. Person Weight: 249.48 kg (550 lbs.)
• Max. Person, Motor & Gear Weight: 566.99 kg (1250 lbs.)
• Interior Depth: 54.102 cm (21.3")
• Transom Height: 53.34 cm (21")
• Deadrise: 7 degrees
• Hull Material: .125 5052 marine alloy
• Average Dry Weight: 433.18 kg (955 lbs.)
• Average Package Weight: 786.98 kg (1735 lbs.)
• Package Height: 1.63 m (5' 4")
• Package Width: 2.08 m (6' 10")
• Package Length: 7.04 m (23' 1")
• Storage Length: 6.6 m (21' 8")
