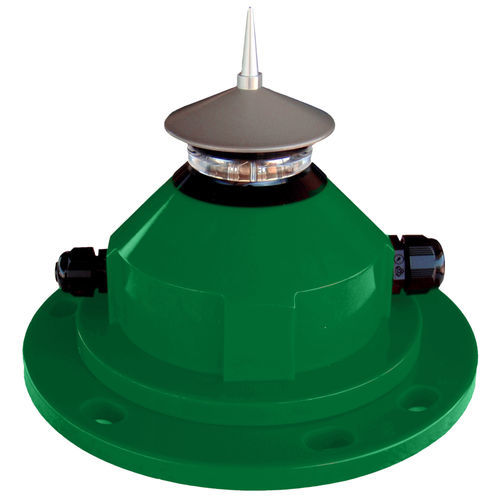

Beacon signalling light NOVA-65
LEDincandescentwhite

beacon signalling light
beacon signalling light
beacon signalling light
beacon signalling light
beacon signalling light
Add to favorites
Compare this product


Characteristics

Application domain
for beacons
Light source
LED, incandescent
Color
white, red, green, yellow, blue
Mounting
fixed
Material
polycarbonate
Housing color
green
Protection level
IP68, IP66, ATEX
Other characteristics
360°
Visibility arc

360 °

Power consumption

10 W

Service temperature

Min.: -40 °C
(-40 °F)

Max.: 70 °C
(158 °F)

Weight

2 g, 770 g
(4.4 oz, 27.2 oz)

Height

171 mm
(7 in)

Description

The Nova-65 features unique and proprietary optics which provide a 360° beam at 5°, 10°, 20° or 30° vertical divergence. Utilizing a highly efficient compact lens, the Nova-65 is a one of a kind, small, lightweight marine beacon. The 10° divergence lens is ideal for fixed or floating aids to navigation while the 20° and 30° lenses provide exceptional performance on buoys. The 5° lens can be used to meet specific needs that require a much further range while still using a minimal amount of power. Two options of housing are available for general marine use (GMU) and for NEC Class 1 Division 2: polycarbonate and a ruggedized metal version. For ATEX/IECEx (Category 3), housing is available in ruggedized metal only and with a 10° lens. Both housing options are designed to withstand the harsh marine environment including ice buildup in extremes of latitude and the high temperatures experienced along the equatorial plane. IP-66 and IP-68 make Nova-65 the choice of professionals. CHARACTERISTICS User selectable power and flash code settings for multiple visual range performance Full monitor and control capability SignalView™ program to set user options Approved by USCG for class A, B and C offshore structures A constant current power source provides maximum lifetime of LEDs Temperature compensated LED drive circuits ensure uniform brightness with ambient temperature change Hard Wire Synchronization Proven Long Term Reliability Intensity exceeds candle power requirements by 33CFR 118.60 OPTIONS GPS Synchronization 5°, 10°, 20° or 30° vertical divergence lens
