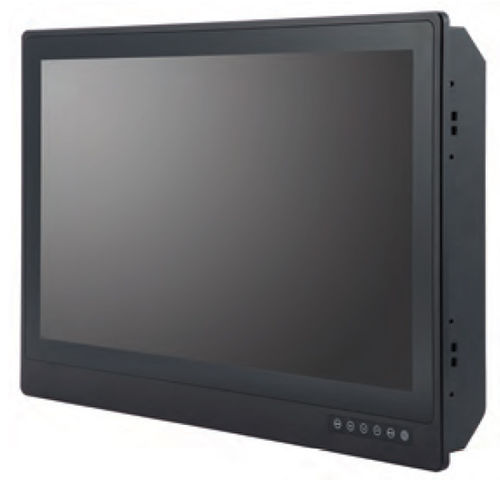

Boat display TIMX-W215
for shipsfor yachtsmulti-function

boat display
boat display
Add to favorites
Compare this product


Characteristics

Application domain
for boats, for ships, for yachts
Function
multi-function
Display size
21.5"
Other characteristics
touch screen, wide

Description

This specification defines the descriptions for the TIMX-W215 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications. KEY FEATURES Capacitive touch OSD Control HDMI, DVI, RGB, BNC (Option) input Picture in Picture (PIP) Projected Capacitive Touch Screen – Option Anti-glare – Option Internal Buzzer Control – Option Flush Mounting SPECIFICATION GENERAL FEATURE Section - Specifications Display type - LED Backlight, Wide TFT LCD Resolution - 1920 x 1080 @60Hz Aspect Ratio - 16:9 Brightness - 300cd/㎡ Contrast Ratio - 1500:1 Response Time - 18ms Active Area - 476.64 (H) x 268.11 (V) mm Pixel Pitch - 0.24825 (H) x 0.24825 (V) mm Viewable Angle - 178° RL / 178° UD Supports Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76Hz (Vertical) Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 Connector Types - 1 x HDMI (Standard) 1 x DVI (DVI 24p female) 1 x RGB (D-SUB 15p female) 2 x Composite (CVBS) 1 x RS232 (D-SUB 9p female) 1 x RS-422/485 (Euro Terminal Block) Power Specification - 100~230VAC 50/60Hz (IEC Standard Type) DC24V (Terminal Block) Power Consumption - 35W (MAX) Dimension - 540 (W) x 70 (D) x 370 (H) mm Weight - 9.2kg Temperature Range - Operating : -15℃ to +55℃ Non-Operating : -20℃ to +60℃ Humidity Range - Operating : up to 95% Non-Operating : up to 95% Option - Projected Capacitive Touch Screen Anti Glare Glass, Optical Bonding Sunlight Readable/High Brightness RS-232/422/485 Composite Video Buzzer IP-Rating - IP65 Front Test Approval - IEC 60945 4th, IACS E-10, IEC 60529 Certification - DNV GL Warranty - 24 months

Catalogs

TIMX-W215
TIMX-W215
2 Pages
