Cargo ship monitoring and control system UNUM Marine

for boatmarinefor cruise ships

Overview

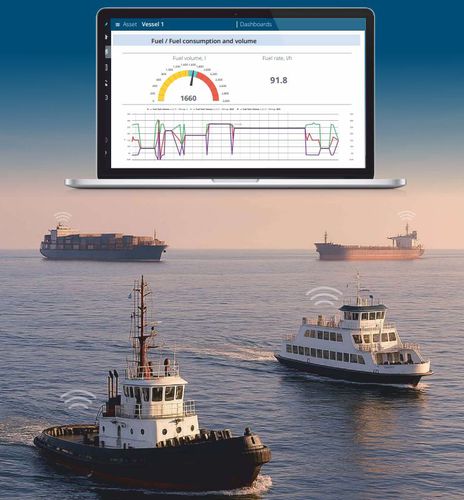

UNUM Marine is an integrated telematics and fuel monitoring solution combining high-precision flowmeters, onboard gateways with edge computing and a cloud platform to deliver engine-level fuel control and real-time performance visibility for vessels of all sizes.

What You Get with UNUM Marine

• Lower fuel costs through accurate, engine-level fuel measurement
• Improved maintenance planning based on operational data
• Reduced unplanned downtime with real-time diagnostics
• Extended asset life via early detection of anomalies
• Faster return on investment from reduced fuel losses and misuse

Key Capabilities

• Engine operation monitoring: RPM, oil pressure, coolant temperature
• Fuel monitoring: instantaneous flow rate and cumulative consumption per engine/generator/boiler
• Remote diagnostics, event detection and alerts
• Genset monitoring and predictive maintenance analytics
• Vessel motion tracking: GPS, geofencing and speed (knots)
• CO2 emissions monitoring per engine and fleet-level reporting

Hardware

• CANUp telematics gateways with edge-computing functions
• Smart fuel flowmeters: DFM family, DFM Marine, LC Corio
• MasterCAN data converters and gateways for NMEA 2000 and J1939
• Onboard sensors and gateway devices for analog and digital inputs
• UNUM Cloud platform and mobile app for visualization, analytics and alerts

Applications

• Technical and auxiliary vessels: tugboats, mooring and pilot boats, firefighting and diving vessels
• River transport: dry-cargo ships, tankers, passenger vessels, tugs and pushers
• Sea transport: container vessels, tankers, passenger ships, fishing vessels, icebreakers

Vessel parameters monitored by the telematics system

• FUEL
  • Instant flow rate for propulsion engines, generators and boilers
  • Total and mode-specific fuel consumption (Idle vs Optimal)
  • Fuel temperature and tank levels
  • Remaining on-board fuel oil, lube oil and diesel volumes
• ENGINE
  • Engine hours and running time
  • Operating time in Idle and Optimal modes
  • Coolant temperature and engine oil pressure
  • Total and hourly CO2 emissions
  • Operating mode: Idle / Optimal / Overload
  • Average RPM of propulsion engines
• GENERATORS AND BOILERS
  • Power network voltage and battery voltage
  • Energy produced per liter of fuel
  • Generator phase frequency, voltage and current
  • Boiler steam and water pressure and temperatures
• DATA AND EVENTS
  • Event logging: power on/off, interference and data tampering detection
  • Operating time in event modes
  • Flow meter tampering alerts, engine overspeed, boiler overheating
  • Ship position (GPS latitude/longitude) and average speed
  • Inputs from standard and additional analog sensors

Who Benefits

• Shipowners & operators: transparency on fuel use, theft prevention and lower operating costs across fleets
• Shore-based technical teams & engineers: remote equipment health monitoring, alerts and condition-based maintenance
• System integrators & marine engineers: integration via NMEA 2000, J1939, Modbus, analog inputs and open API
• Captains & onboard crew: live alerts, accurate operational data and event logs for efficient operations

Technical specifications

• Platform: UNUM Marine (hardware + cloud + mobile app)
• Supported hardware: CANUp gateways, DFM family flowmeters, LC Corio, MasterCAN converters
• Integrations: NMEA 2000, J1939, Modbus, analog inputs, open API
• Monitored metrics: fuel flow (instant & total), fuel temperature/levels, engine hours, RPM, coolant temp, oil pressure, CO2 (total & hourly), generator voltage/frequency/current, boiler pressures and temps
• Features: real-time diagnostics, geofencing, GPS tracking, event logging and tampering detection
• Analytics: per-engine fuel monitoring, genset energy-per-liter, runtime and condition-based predictive maintenance
• Target vessels: small to mid-sized vessels (complete integrated solution) and larger vessels (integration into existing systems)
• Deployment: onboard edge computing with cloud visualization, analytics and alerting
