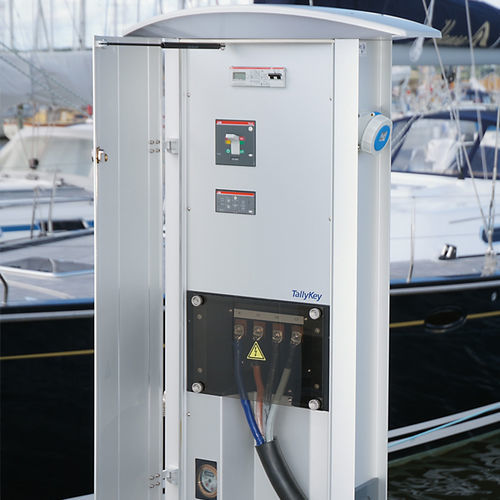

Water supply pedestal T8

electrical distributionlightingfor docks

Overview
Tallykey T8 supply pedestal delivers up to 900 A and can include up to two water taps. It is designed to provide power to large outdoor venues, marinas, ports and superyachts while allowing metered consumption and user payment.

Design & Construction
The T8 combines a compact, marine-suited shape with anodized aluminum construction. Fasteners (bolts, shafts, screws) are acid-resistant/acid-proof. Integrated LED lighting is installed under the curved top. The unit is designed for low maintenance and long service life in maritime environments.

Electrical safety & Standards
The T8 complies with European regulations and common local certification standards. All electrical modules (relays, meters, etc.) are protected behind aluminum panels and impact-resistant plastic. Relays are arranged in individual closed circuits. The pedestal supports up to six horizontally mounted outlets for efficient space usage.

Controls & Payment
T8 can be fitted with the TALLYWEB online payment system installed behind a storm-proof auto-closing front lid. The push-button control panel accepts one-time codes and a contactless card reader. Users can register, measure and pay for electricity and water, while managers receive real-time consumption data and can link multiple pedestals to a single master system.

Lighting & Economy
Built-in energy-saving LED lighting beneath the curved top improves visibility and safety in marinas and resort areas. Online self-service reduces queues and administrative workload, supporting operating economy for site owners.

Applications

• Industrial ports
• Marinas
• Holiday resorts and camping sites
• Superyachts
• Outdoor arenas
• Parking areas

Specifications

• Supply capacity: up to 900 A
• Water taps: up to 2
• Power outlets: up to 6 outlets mounted horizontally
• Construction material: anodized aluminum
• Fasteners: acid-resistant / acid-proof bolts, shafts and screws
• Standards: compliant with EU regulations and local certification standards
• Protection: electrical units (relays, meters, etc.) protected behind aluminum and impact-resistant plastic
• Relays: individual closed circuits
• Lighting: built-in energy-saving LED lighting under curved top
• Payment integration: compatible with TALLYWEB online payment system (installed behind storm-proof auto-closing front lid)
• Control interface: push-button panel supporting one-time codes and contactless card reader
• Connectivity: real-time data communication; multiple stands/remote locations can be linked to one master system
• Maintenance: maintenance-free application
• Typical use cases: ports, marinas, holiday resorts, camping sites, arenas, parking, superyachts
