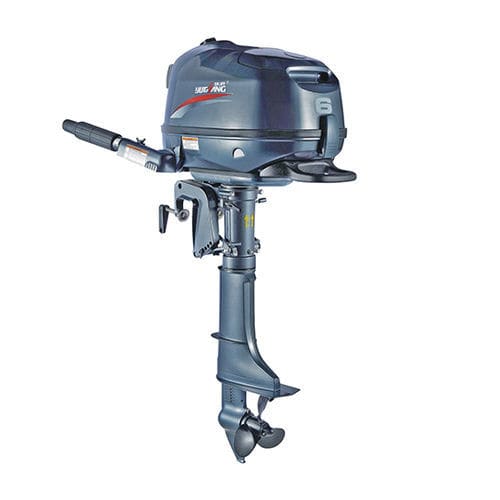

Outboard engine 6HPgasolineboatingwater-cooled
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- outboard
- Power source
- gasoline
- Market
- boating
- Cooling system
- water-cooled
- Ignition
- manual start
- Other characteristics
- 4-stroke
- Power
4.4 kW
(6 hp)- Displacement
139 cm³
(5 US fl oz)- Number of cylinders
1 unit
- Engine speed
Max.: 5,500 rpm
(34,558 rad.min-1)Min.: 4,500 rpm
(28,274 rad.min-1)- Consumption
2 l/h
(1 us gal/h)- Bore
62 mm
(2.4 in)- Stroke
46 mm
(1.8 in)- Length
750 mm
(30 in)- Width
333 mm
(13 in)- Height
1,040 mm
(41 in)- Weight
27 kg
(60 lb)
Description
The 6HP water-cooled 4T is a powerful and efficient engine designed for various applications. It features a manual starting system with a choke valve for easy ignition. The engine is equipped with a tiller handle control system and a manual tilt trim and tilt system. It operates on unleaded gasoline and has a fuel tank capacity of 1.1L. The engine's gear position includes forward, neutral, and reverse, with a gear ratio of 2.08 (27:13).
- Model: 6HP
- Dimension: Overall Length: 750mm (29.5in), Overall Width: 333mm (13.1in), Overall Height: 1040mm (40.9in)
- Weight: 27Kg (59.5lbs)
- Full Throttle Operating Range: 4500-5500 r/m
- Maximum Output: 4.4kw/6hp
- Idling Speed: 1500±50 r/m
- Displacement: 139cc
- Bore x Stroke: 62x46mm (2.44x1.81in)
- Ignition System: CDI
- Spark Plug: NGK BR7HS-10
- Spark Plug Gap: 0.6-0.7mm
- Control System: Tiller Handle
- Starting System: Manual
- Starting Carburation System: Choke Valve
- Gear Position: Forward-Neutral-Reverse
- Gear Ratio: 2.08 (27:13)
- Trim And Tilt System: Manual Tilt
- Recommended Fuel: Unleaded Gasoline
- Gear Oil: 0.1L
- Fuel Tank Capacity: 1.1L
- Torque: 8.5N.m/2500rpm
- Propeller: 7.8x8.0
- Fuel Consumption: 2.2L/h
- Packing Size: 115x45x57.5cm
