Sealed 25mm waterproof trackball, wide-temperature alloy construction, and backlit mechanical keys for reliable, precise input in demanding conditions.

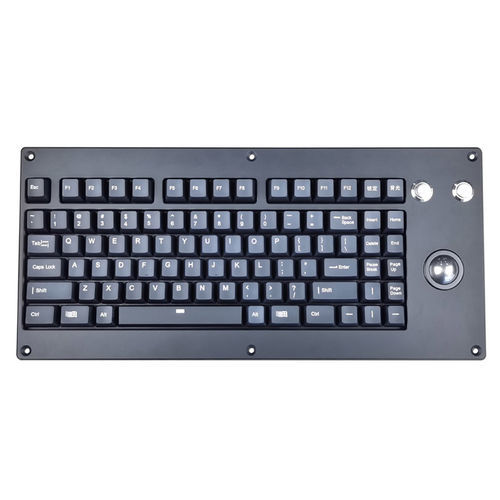

The KH-K86-383 is a rugged, compact keyboard engineered for stable and precise cursor control in demanding military and marine environments. It integrates a waterproof and durable 25mm standard trackball, offering unmatched operational stability and tactile feedback. ideal under constant vibration, gloved use, or precise positioning tasks. Built with the same high-strength titanium black alloy and wide temperature tolerance, it provides a reliable and intuitive all-in-one input solution for mission-critical systems.
Ideal for military vehicle consoles, naval vessel command stations, ship bridge workstations, helicopter/aircraft cabins, and any mobile or fixed deployment where space is limited and adjustable, ruggedized input is critical.
Features
Constructed with a titanium black, high-strength alloy front panel.
Constructed with a titanium black, high-strength alloy front panel.
Engineered to perform reliably across a wide temperature spectrum.
Customized design is optional.
Specifications
Dimensions
383 x 172 × 42mm
Key Switch
Mechanical switches
(2.00mm travel)
Highlight
Robust rotating and locking mechanism
Power Supply
5.0V DC ±5%
OS Compatibility
All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature Range
Storage: -45°C to +90°C
Operating: -40°C to +80°C
Humidity
30–95% RH (operating)
MTBF
> 50000H
MTTR
< 30min
