Boat Bimini top mounting hardware 5301

for boat

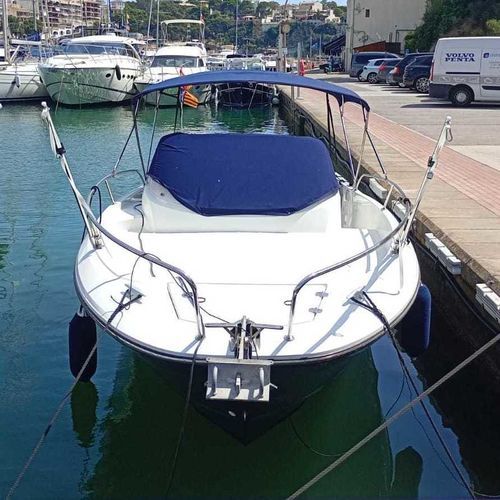

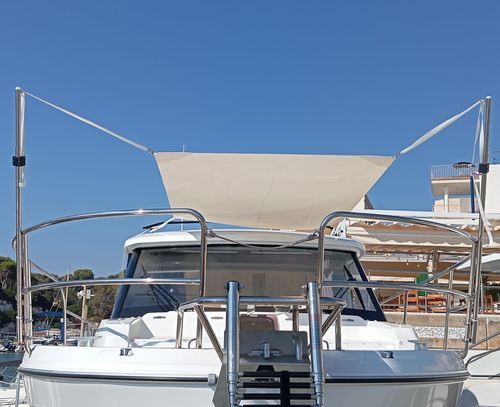

Extendable Boat Bimini System
Compact kit to extend shaded area on board for motorboats and sailing boats. Telescopic poles enable rapid extension of a bimini towards bow or stern to shelter cockpit or deck.

Easy Installation in a Few Steps
Fast mounting with simple tools; compatible with rail-mounted supports or deck sockets. Kit variants available for boats with or without railings.

System Benefits

• Quick extension of shade without complex fitting
• Telescopic tube adjustable in 6 positions (approx. 110–190 cm)
• Stainless steel tubes Ø 25 mm — suitable for marine use
• Compatible with rail or deck installation (adapters included)
• Optional made-to-measure bimini fabric (white or blue)
• Anti-vibration plastic bushings reduce noise and movement

Available Models
Kit for Boats with Railings — Includes:

• 2 stainless steel telescopic tubes (110–190 cm / Ø 25 mm)
• Fabric strap and carabiner
• 2 quick-release hinges for railing installation
• Plastic bushings for different railing diameters

Article | Railing Diameter
5300 | 22 mm
5301 | 25 mm
5302 | 30 mm

Kit for Boats without Railings — Includes:

• 2 stainless steel telescopic tubes (110–190 cm / Ø 25 mm)
• Fabric strap and carabiner
• Installation sleeves for deck mounting (vertical or angled)

Article | Installation Type
5305 | Straight (vertical)
5310 | Angled 60°

Bimini Fabric (Optional — Custom Made)
Fabric is not included. Reinforced rectangular fabrics can be manufactured to measure after system installation for perfect fit.
Article | Type | Dimensions
5322 | Reinforced rectangular | 2 x 1.5 m
5324 | Reinforced rectangular | 2 x 2 m
5323 | Reinforced rectangular | 2.5 x 1.5 m
5325 | Reinforced rectangular | 2.5 x 2 m

3-Step Installation

• Attach supports or sleeves to railing or deck
• Insert the telescopic poles
• Extend and secure the fabric with straps and carabiners

Notes
Supports and sleeves include plastic bushings to prevent noise. No complex tools required; stainless steel components suitable for marine conditions.

Technical specifications

• Material: Stainless steel V4A (316)
• Telescopic tubes: 2 × 110–190 cm, adjustable in 6 positions, Ø 25 mm
• Weight (kit): approx. 2.9 kg
• Mounting options: rail adapters for 22 / 25 / 30 mm or deck sockets (vertical / angled 60°)
• Contents (typical): 2 telescopic tubes, fabric strap, carabiner, quick-release hinges or installation sleeves, plastic bushings
• Bimini fabric: not included — optional made-to-measure
• SKU (product): INT157
