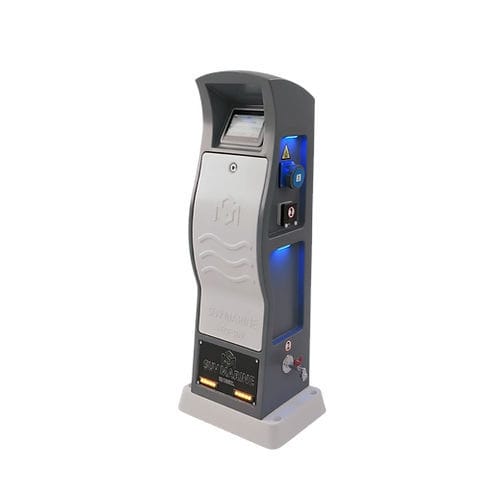

Water supply pedestal SM series

electrical distributionlightingwith built-in light

General description
This marina power pedestal is designed for berth utilities and marina management. It integrates remote monitoring, fault reporting, consumption metering and both online and offline operation modes to simplify system control and user management.

Models

• SM-B01
• SM-P01
• SM-T01

Screen

• 7'' shock- and corrosion-resistant colour touchscreen

Body

• Material: HDPE/ADT polyethylene with UV protection
• Service life: 15–20 years
• Colour: produced to requested colour
• Dimensions (DxWxH mm): 290x450x1200
• Protection rating: IP65

Electrical & sockets

• Terminal blocks for mains connection: 5-pole RSTN PE input/output with Allen fastenings
• Single-phase sockets (230 VAC 1P+N+PE): 16A / 32A / 63A
• Three-phase sockets (400 VAC 3P+N+PE): 32A / 63A and 125A / 250A / 400A / 630A
• Socket types: Marine (standard) and Interlock
• Socket protection rating: IP67
• Socket safety: socket sensor

Water & valves

• Main water connection: 1/2” or 3/4” female connection; quick-fit for 20 mm PPRC pipes
• Water outlet: 1/2” brass ball valves; quick-fit for standard garden hose
• Valve: 1/2’’ motorised smart valve with fault notification

Meters

• Electric meter: digital kWh meter with consumption display per user
• Water meter: per-user water meters with litre consumption display

Lighting

• High-efficiency Power LED; colour options: Blue, Daylight, White, Yellow, Red

Electrical protection

• Residual current device, fuses and socket sensor protection

Operating temperature

• -30 °C to +65 °C

Compliance

• Designed, manufactured and tested in accordance with CE standards and applicable regulations

Operating system and features

• Windows operating system
• Office suite installed
• Encrypted system
• Automatic refund of remaining balance to user account after use
• Online and offline operation
• User-friendly interface
• Remote network control and balance top-up
• Admin levels: global and user admin
• User balance SMS notifications and alerts
• Fault detection and alerting
• Reporting system (balance top-up, refunds, subscriber usage, marina usage, country report, berth contract report)
• Prepaid and postpaid operation modes
• Access to user balance and consumption details
• Pedestal lighting: automatic and manual control
• Mobile application (optional)

Technical specifications

• Brand: Suvmarine
• Model/Series: SM-B01 / SM-P01 / SM-T01 (SM series)
• Screen: 7'' shock- and corrosion-resistant colour touchscreen
• Body material: HDPE/ADT polyethylene (UV protection)
• Body service life: 15–20 years
• Dimensions: 290x450x1200 mm (DxWxH)
• Protection rating: IP65
• Socket options: single-phase 16A/32A/63A; three-phase 32A/63A and 125A/250A/400A/630A; Marine and Interlock types; socket protection IP67
• Electrical protection: residual current device, fuses and socket sensor protection
• Water connections: 1/2” or 3/4” main connection; 1/2” brass ball valve
• Valve: motorised valve with smart fault notification
• Meters: digital electric (kWh) and water (litre) meters per user
• Operating temperature: -30 °C to +65 °C
• Lighting: Power LED (Blue, Daylight, White, Yellow, Red)
• Compliance: CE
