12 V battery EPSILON 90
lithiumioniron phosphate

12 V battery
12 V battery
12 V battery
12 V battery
Add to favorites
Compare this product


12 V
Storage system
lithium, ion, iron phosphate
Other characteristics
with integrated battery management system
Load capacity

90 Ah


190 mm
(7 in)


175 mm
(7 in)


353 mm
(14 in)


12,500 g
(441 oz)

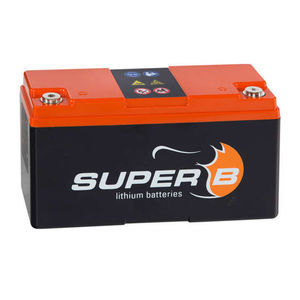

EPSILON 12V90AH The Epsilon 12V90Ah is an intelligent lithium iron phosphate battery (LiFePO4) with a capacity of 90Ah . The Epsilon is a direct drop-in lead-acid replacement. It has superior weight reduction, enormous energy reserves and stable voltage even at extreme loads. This lithium battery is suitable for 12V installations. Its integrated BMS and Bluetooth functionality gives 24/7 information about the status of your lithium battery. Electrical specifications Nominal capacity 90Ah Open circuit voltage 13.2V Self-discharge 5000 cycles (at 100% DoD) Voltage 12V Mechanical specifications Dimensions (LxWxH) 353 x 175 x 190 mm / 13.9” x 6.9” x 7.5” Weight 12.5 kg / 27.6 lbs Case material PBT + PC Ingress protection IP51 Cell type / Chemistry Cylindrical - LiFePO4 Charge & Discharge specifications Charge method CCCV Charge voltage 14,3V - 14,6V Max. charge current 90A End of discharge voltage 8V Discharge current continuous 200A Discharge pulse current 350A (10 sec) Temperature specifications Charge temperature -10°C to 45°C / 14°F to 113°F Discharge temperature -20°C to 60°C / -4°F to 140°F Storage temperature -10°C to 35°C / 14°F to 95°F Compliance specifications Certifications CE, FCC, UN 38.3, UN ECE R10.05, UL 1642 (Cells) Shipping classification UN 3480 General specifications EAN-13 8718531361317 Battery designation IFpR19/67[60p4s] M/-20+60/90
