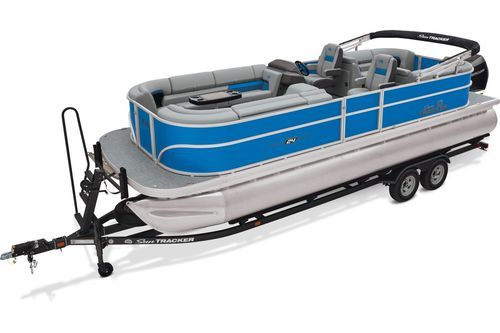

Multihull pontoon boat PARTY BARGE® 24 XP3

outboardtri-tubeopen

Overview
The PARTY BARGE® 24 XP3 is the biggest pontoon in the SUN TRACKER® family. The 24' deck supports up to 12 passengers. New for 2026: backrest cubbies for extra easy-access storage and cupholders, premium weave flooring, and upholstery accents that match the fencing color.

Key Features

• XP3 performance strakes and wave-deflecting nose cone for maximum performance
• SUN TRACKER FLARE™ touchscreen gauge display with integrated GPS and upgraded four-speaker Bluetooth®-capable stereo
• STOW MORE™ patented built-in seat-back storage system

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty plus limited lifetime structural & deck warranty
• NMMA® certified
• 10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top with LED courtesy lights, storage pockets and protective boot
• Integrated LED docking lights; integrated LED navigation & anchor lights
• 4 folding mooring cleats & starboard side tie-off mooring eye
• Port wheelchair-accessible gate
• Rear boarding platform with wide 4-step telescoping boarding ladder & grab rails
• Aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard; fire extinguisher; horn

Console

• Driver console with integrated storage, drink holders, built-in footrest and ergonomically-positioned controls
• SUN TRACKER FLARE™ touchscreen gauge display with integrated GPS & stereo control
• 12-button switch panel; tilt hydraulic steering with deluxe soft-touch steering wheel
• 4 Wet Sounds® 6.5" upholstery speakers, strategically located and shielded within seat bases
• Master power on/off switch; recessed mobile phone cubbies; USB charging receptacle

Interior

• Patented STOW MORE™ seat-back storage for all couches & lounges
• Bow port couch with underseat storage & armrest with drink holder
• Bow starboard console couch with underseat storage
• 2 fixed deluxe high-back swiveling bucket seats, reclining with self-leveling arms (bow port side)
• Integrated drink holders with storage area; removable table with 4 molded-in drink holders and soft-touch mat
• In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — with bilge pump in center log
• Aft port rear-facing double lounge with underseat storage & pop-up changing room; aft starboard couch with lockable storage
• Bumper storage compartment; interior courtesy lighting; full-width aft swim deck
• Woven 16-oz. marine-grade flooring throughout; marine-grade UV-resistant, top-coated upholstery with multiple foam densities

Performance

• Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• XP3 performance strakes & wave-deflecting nose cone
• Full-length, one-piece longitudinal M-bracket deck supports and full-width extruded Z-bar deck supports thru-bolted to M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim; reinforced bow & stern structures
• All-welded, all-aluminum extended motor pod with built-in EPA-compliant fuel system; all-aluminum box-beam transom
• Factory-installed underpinning (under-deck shielding); pressure-treated 3/4" deck with Limited Lifetime Warranty
• 1-1/4" (.090" thick) anodized aluminum fence rails; sound & vibration-deadening fence insulation
• Precision fit & finish via plasma & laser-cut parts and robotically-welded construction; rotomolded storage, furniture & console

Exterior

• Fencing color options: Heritage Red, Pearl White, Sky Blue or Starlite Black
• Patent-pending TRACK FORMED® fence design with high-sheen finish; full-height elevated fence panels for deck drainage & ventilation

Electrical

• 500 GPH (1,893 LPH) Ultima automatic bilge pump
• Battery disconnect switch; easy-access marine-grade automotive-style fuse panel with latching fuse block door
• Protective abrasion-resistant wire wrap and water-resistant connectors

Caractéristiques / spécifications techniques

• Length: 7.98 m / 26' 2"
• Deck Length: 7.34 m / 24' 1"
• Deck Width: 2.59 m / 8' 6"
• Max. Recommended HP: 250 HP
• Fuel Capacity: 196.82 L / 52 gal.
• Pontoon Log Length: 7.59 m / 24' 11"
• Pontoon Log Diameter: 66.04 cm (26")
• Pontoon Log Material: 0.100 5052 marine alloy
• Max. Person Capacity: 12 persons
• Max. Person Weight: 861.83 kg / 1,900 lbs.
• Max. Person, Motor & Gear Weight: 1,270.06 kg / 2,800 lbs.
• Interior Depth: 69.215 cm
• Average Dry Weight: 1,524.07 kg / 3,360 lbs.
• Average Package Weight: 2,578.67 kg / 5,685 lbs.
• Package Height: 2.69 m / 8' 10"
• Package Width: 2.59 m / 8' 6"
• Towing Length: 11.51 m / 37' 9"
• Storage Length: 11.51 m / 37' 9"
