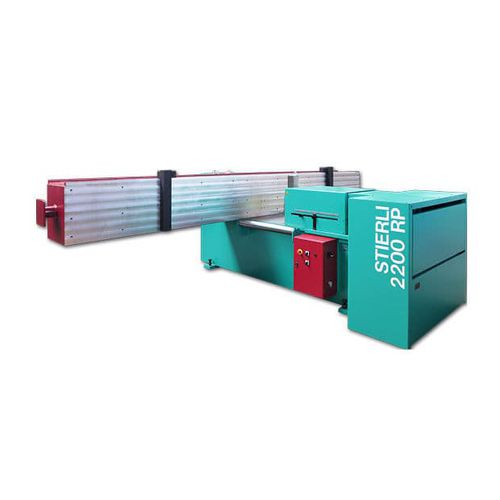

Shipyard bending press 2200 RP

hydraulicmanually-controlled

The “2200 RP” hydraulic horizontal press can be relied upon to carry out all bending and straightening tasks in heavy steel construction, vehicle construction and steel service centres. The straightening and bending process can be carried out quickly and precisely. The operator is assisted by the straightforward manual control system with fine stroke adjustment. The robust and heavy design of this bending and straightening machine guarantees precise straightening results. The open design enables optimal part handling and loading of the machine using a factory crane or powered roller conveyor. Universal use in steel construction: Cambering (pre-tensioning, cambering) of steel beams Straightening and bending steel beams Straightening of steel profiles (L profiles, T profiles, I profiles, Z profiles, U profiles, rail profiles, special profiles) Straightening of welded parts and welded structures Straightening of steel plates and flame-cut parts Heavy form bending work (work with heavy v-blocks or dies) Bending and straightening of very large pipes Working power - 220 to / 2200 kN Tooling height - 600 mm / 23.62" (inch) Straightening capacity - HEA/HEB 600 Pipe bending - 4" Cylinder speed - 0 - 0.6 m/min stufenlos regelbar Motor power - 18.5 kW Voltage - 3x400 V / 50 Hz (andere Spannungen Weight - 18'000 mit 8m Richtbalken Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobil
