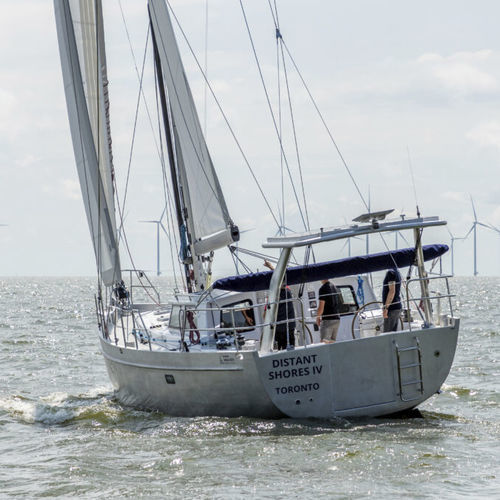

Cruising sailing yacht Enksail Orion 49

aluminumlifting keelcustom-made

Overview
The Enksail Orion is a Dutch-built custom aluminium sailing yacht range combining cruising comfort with sporty performance. Available in two sizes (Orion 49 and Orion 54), the design by Kees van de Stadt (Satellite Yacht Design) features a straight bow and an all-aluminium hull delivered as bare aluminium as standard. An optional centreboard keel provides a variable draft for access to shallow waters.

Performance
The Orion series uses a relatively low-displacement, sporty hull form to deliver efficient sailing with moderate crew effort. Aluminium construction and the optional centreboard keel enhance versatility, allowing good seaworthiness and adaptability to different cruising areas.

Models & specifications (tabular)
ENKSAIL ORION 49
CE design class: A
General:
Hull length: 14.95 m
Length waterline: 14.20 m
Beam: 4.50 m
Water displacement: 19 tons
Depth: 1.90 m
Centerboard keel: 1.50 – 3.50 m
Sailing area: 120 m²
Capacity:
Fuel tank: 850 L
Water tank: 650 L
Waste tank: 120 L
Propulsion:
Engine: Yanmar 4JH
Power: 80 HP

ENKSAIL ORION 54
CE design class: A
General:
Hull length: 16.65 m
Length waterline: 15.85 m
Beam: 4.82 m
Water displacement: 22 tons
Depth: 2.00 m
Centerboard keel: 1.60 – 3.60 m
Sailing area: 130 m²
Capacity:
Fuel tank: 1000 L
Water tank: 800 L
Waste tank: 240 L
Propulsion:
Engine: Yanmar 4JH
Power: 110 HP

Technical specifications

• Designer: Kees van de Stadt (Satellite Yacht Design)
• Hull material: Aluminium (standard delivered as bare aluminium)
• Design approach: Sporty hull with relatively low water displacement for efficient sailing
• Models available: Orion 49 and Orion 54
• Orion 49 — Hull length: 14.95 m; Waterline: 14.20 m; Beam: 4.50 m; Displacement: 19 tons; Draft (centreboard): 1.50 – 3.50 m; Sail area: 120 m²; Engine: Yanmar 4JH, 80 HP; Fuel: 850 L; Water: 650 L; Waste: 120 L
• Orion 54 — Hull length: 16.65 m; Waterline: 15.85 m; Beam: 4.82 m; Displacement: 22 tons; Draft (centreboard): 1.60 – 3.60 m; Sail area: 130 m²; Engine: Yanmar 4JH, 110 HP; Fuel: 1000 L; Water: 800 L; Waste: 240 L
• CE design class: A (both models)
