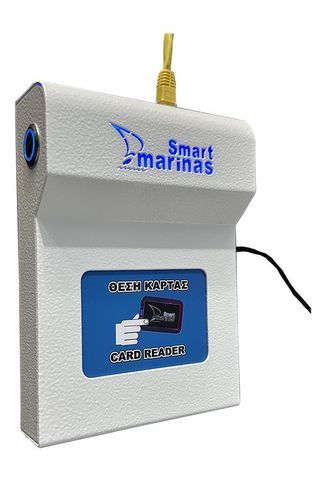

Card for dock pedestals payment system SM-CARDWRITER 3000

Card programming console for encoding SM-RFID cards required to operate the pillars. Connects to the Operator’s local network and runs built-in management software accessible via a web browser.

Operation and encoding

• Place an SM-RFID card on the glass panel to encode; remove after audible and visual confirmation indicates successful encoding.
• Predefined card types are available to speed up the encoding process.
• The Operator can configure card sale price, rates per kWh and per m³, and the number of cards to encode in a single session.

Software and data

• Built-in web-based software (no PC installation required); access via local address http://cardwriter:3000 protected by a password.
• User-friendly graphical interface with Operator logo and license reference for on-device branding.
• Maintains a monthly registration history and allows export of records in Excel format; exported files are retained and cannot be deleted for security audits.

Connectivity and power

• Network connection: RJ45 Ethernet.
• Power supply: 5V / 1A via Type-C adapter.
• Configured to operate exclusively within the Operator’s local network for security and isolation.

Caractéristiques / spécifications techniques

• Product type: Card programming console
• Connectivity: RJ45 Ethernet
• Power supply: 5V / 1A, Type-C
• Access method: Built-in web interface (local URL: http://cardwriter:3000)
• Supported card: SM-RFID
• Encoding feedback: Audible and visual confirmation
• Data management: Monthly registration history, Excel export (exported files non-deletable)
• Operation domain: Local network only
• Warranty period: 2 years
