Distribution pedestal Proteas

lightingelectricpower

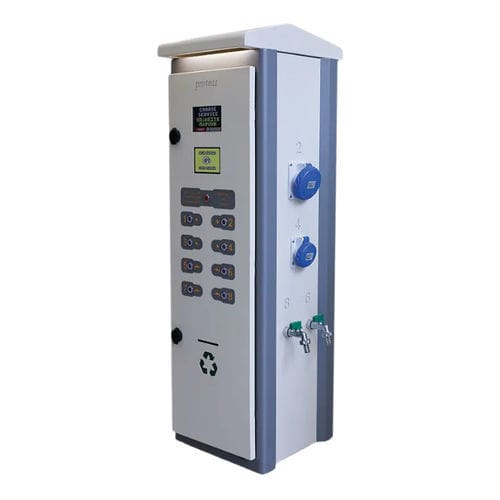

The Proteas Pillar is a water and power distribution unit designed for installation in marinas, campsites and other unattended locations. It dispenses predefined amounts of electrical energy (kWh) and water volume (m³) to users via a prepaid-credit system managed by the authority.

Advanced Functionality
A rear access panel allows authorized personnel to inspect individual residual current devices (RCDs) in case of a personal short circuit and to perform maintenance tasks.

Safety & Sealing
Complete separation of electrical and hydraulic circuits ensures maximum user safety and waterproof integrity of the unit.

Construction – Pillar Body
Manufactured entirely from stainless steel with a modern design and precision craftsmanship using the latest generation of industrial machinery.

Coating – Color Finish
RAL-type electrostatic powder coating provides corrosion and UV protection suitable for harsh marine environments.

LED Lighting
Low-consumption LED lighting provides night illumination; each outlet and selection button is individually backlit and lighting is automatically deactivated during daytime to conserve energy.

Electronic Control System

• Equipped with an electronic control panel for prepaid card billing using contactless transaction technology.
• 5" full-color TFT LCD display with large fonts, showing usage information in two languages (Greek & English) and step-by-step scrolling instructions for the user.
• Illuminated selection buttons for each outlet (1 to 8) that switch off automatically when the outlet is in use to assist subsequent users.
• Illuminated refund button allowing users to retrieve unused balance back to their card.

Available Configurations – Total of 8 Outlets

• 2 power + 2 water outlets
• 2 power + 4 water outlets
• 4 power + 2 water outlets
• 4 power + 4 water outlets
• 6 power + 2 water outlets
• 8 water outlets

Certifications

• IK10 – Impact resistance
• CE – European Conformity
• IP65 – Ingress protection
• Glow Wire Test – Fire resistance in case of short circuit
• EN 60335-2-75 – Safety certification for electric commercial vending machines
• EN 60068-2-52:1996 – Corrosion resistance
• EN ISO 9001:2015 – Certified Quality Management System

Technical specifications

• Model name: Proteas
• Material: Stainless steel (pillar body)
• Coating: RAL-type electrostatic powder coating (corrosion & UV protection)
• Dimensions (H x W x D): 1200 mm x 350 mm x 350 mm
• Weight: 35 kg
• Mounting base: 3 mm reinforced stainless steel with central opening for cable/pipe routing
• Mounting holes: four Ø14 mm for secure anchoring
• Display: 5" full-color TFT LCD, bilingual (Greek & English)
• Outlets/configurations: see "Available Configurations" above (up to 8 outlets)
• Control & billing: contactless prepaid card electronic control panel
• Warranty: 2-year functional warranty
