PICOone is SIMARINE’s new entry level battery monitor with the Real-Time Battery Health™ Algorithm for precise battery health measurements.
Coupled with a compatible SC302T combo shunt presents a perfect battery monitoring system for boats and caravans with one service battery bank up to 300A on 12V, 24V, 48V, 60V and 72V, one or two engine/backup battery banks and up to 2 tanks.

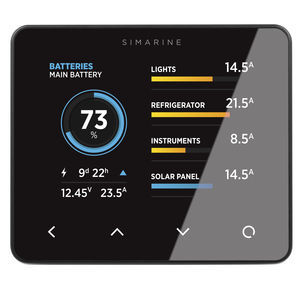

PICOone’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.
The barograph gives precise air-pressure readings, trends, and history.
Free SIMARINE Android and iOS Apps are available to connect your PICOone to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware for adding new features.
Barograph function included.
Display: LCD TFT 3,5” High resolution IPS, Gorilla Glass, anti-reflective coating
Human interface: 4 Touch buttons, water resistant
Enclosure: CNC-milled anodized aluminum, water- and dustproof
Dimensions: HxWxD 98 x 83 x 10 mm
Manual Quick guide System overview Dimensions Wiring diagrams Firmware Upgrade
