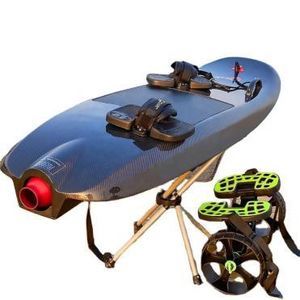

Carbon fiber jet board Wave Jet

battery-poweredmotorizedelectric

Product Overview
Designed for high-performance water recreation and professional marine use, this electric jet surfboard integrates a 20 kW motor with a Toray aviation-grade carbon fiber hull. It accelerates from 0 to top speed in approximately 3 seconds, reaches up to 68 km/h, and offers an operational range up to 30 km per charge with a professional 3-second quick battery-swap mechanism.

Core Advantages

• 20 kW peak motor power for rapid acceleration and high top speed.
• Toray aviation-grade carbon fiber hull combining stiffness and low weight.
• CATL Grade-A battery cells with advanced BMS and long cycle life.
• 2+1 custom fin layout for precise turning and stability in marine conditions.
• IP68-rated wireless remote with dual-channel signal, three speed modes, wireless charging and optional wired mode.
• 3-second quick-lock battery replacement for minimal downtime on the water.
• Aerodynamic liquid-cooling channel for sustained high-speed thermal management.

Key Features & Innovative Technologies

• High-Efficiency 20 kW Drive & Integrated Cooling: high-output electric drive delivering ~68 km/h and an integrated liquid-cooling channel for the drive bay.
• Toray Carbon Fiber Hull & 2+1 Fin System: aviation-grade carbon construction for optimized stiffness-to-weight ratio and a fin configuration for sharp control.
• CATL Battery Pack & 8-Layer Safety Matrix: CATL Grade-A cells, triple-chip BMS architecture and multiple protections including overcurrent, overvoltage, overcharge, over-discharge, short-circuit prevention and real-time temperature monitoring.
• IP68 Ergonomic Remote Controller: dual-channel transmission to avoid interference, three adjustable speed levels, wireless charging and switchable wired operation.
• 3-Second Fast Battery Swap: professional quick-lock mechanism enabling rapid on-site battery replacement.
• Cooling & Durability: aerodynamic liquid cooling and comprehensive battery protection to support continuous high-speed operation.

Specification (table view)
Place of Origin — Guangdong, China
Brand Name — Havospark
Material — Carbon Fiber (Toray aviation-grade)
Peak Motor Power — 20 kW
Battery Capacity — 72V 51Ah
Max Speed — About 68 km/h
Size — 180 × 60 × 20 cm
Weight — About 70 kg (with battery); 34.5 kg (without battery)
Battery Cycle — 800 times (table) / CATL test claim 1,200+ full cycles

Warranty & Service
Hull & Structure — 12-month warranty on Toray carbon fiber hull
Motor & Drive System — 12-month coverage for motor and ESC (electronic speed controller)
Battery Pack — 12-month warranty with full BMS diagnostic support
Global spare parts availability and dedicated technical support provided

Technical Specifications

• Product Category: Electric Powered Jet Surfboard
• Hull Material: Toray aviation-grade carbon fiber
• Quality Certification: SGS / IATF 16949
• Peak Motor Power: 20 kW
• Maximum Speed: 68 km/h (0 to max in ~3 seconds)
• Range / Endurance: Up to 30 km per charge
• Battery Cells: CATL Grade-A high-performance cells
• Cycle Life: Tested for 1,200+ full cycles (CATL claim); table shows 800 cycles
• Battery Capacity: 72V 51Ah
• Battery Protection: Triple-chip BMS + 8 safety safeguards (overcurrent, overvoltage, overcharge, over-discharge, short-circuit prevention, temperature monitoring, etc.)
• Battery Swap: 3-second quick-lock replacement system
• Fin System: 2+1 custom fins
• Remote Controller: IP68 waterproof, dual-channel, 3 speed modes, wireless charging
• Cooling: Aerodynamic liquid cooling system
• Dimensions (L×W×H): 180 × 60 × 20 cm
• Weight: ~70 kg (with battery); 34.5 kg (without battery)
