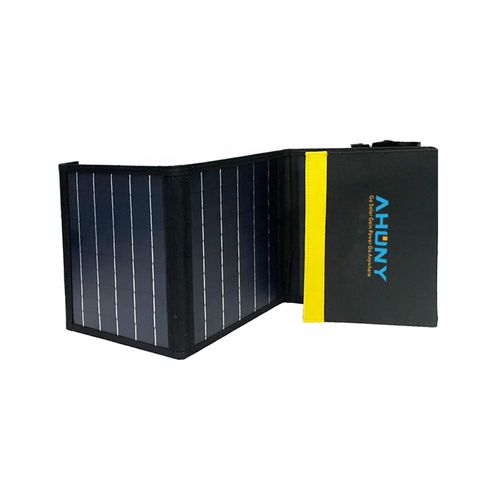

Folding solar panel eMobi F22Wmonocrystalline silicon
Add to favorites
Compare this product
Characteristics
- Structure
- folding
- Material
- monocrystalline silicon
- Peak power (Wp)
22 W
- Voltage at maximum power
8.1 V
- Max power current (Imp)
2.7 A
- Open circuit voltage (Voc)
9.6 V
- Short circuit current (Isc)
2.9 A
- Weight
0.6 kg
(1.3 lb)- Length
598 mm
(24 in)- Width
290 mm
(11 in)- Thickness
12 mm
(0 in)
Description
Solar Cell - A grade mono perc cell
Cell Array[Pcs] - 12*3
Cell Efficiency - 23.00%
Output Voltage[V] - 5/9/12
Port 1-USB - quick charge+MPPT 5V3A,9V2A,12V1.5A
Port 2-USB2 - 5V 3A
Colour - black+yellow
Certification - CE ROHS
Surface/Backsheet - PET,PU waterproof
Solar panel waterproof - IP65
Jbox Waterproof - IP30
Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
Eyelet - silver colour nickel coated copper,4pcs
Package - 1pcs/carton box
