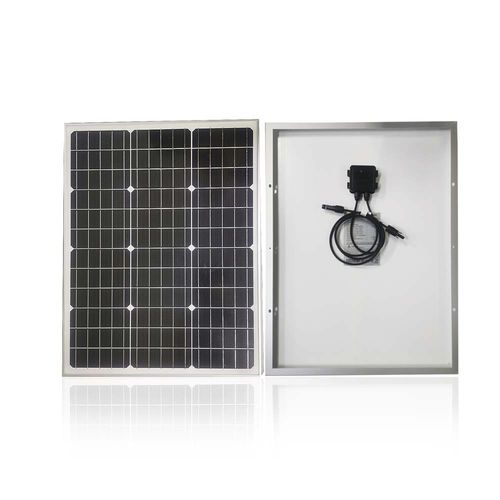

Rigid solar panel eRigid M50w
monocrystalline siliconmarine

rigid solar panel
rigid solar panel
rigid solar panel
rigid solar panel
rigid solar panel
rigid solar panel
Add to favorites
Compare this product


Characteristics

Structure
rigid
Material
monocrystalline silicon
Other characteristics
marine
Peak power (Wp)

50 W

Voltage at maximum power

20.5 V

Max power current (Imp)

2.4 A

Open circuit voltage (Voc)

24.2 V

Short circuit current (Isc)

2.6 A

Weight

4 kg (8.8 lb)

Length

590 mm (23 in)

Width

510 mm (20 in)

Thickness

25 mm (1 in)

Description

Model No. - eRigid M50W Product Name - mono 50w solar panel Maximum Power[WP] - 50 Solar Cell - A grade solar cell Cell Array[pcs] - 156*45 Cell Efficiency - 3*12 Size[mm] - 21.70% Size[inch] - 590*510*25[620*510*25 if make logo] Max Power Voltage Vmp[V] - 20.52 Max Power Current Imp[A] - 2.44 Open Circuit Voltage Voc[V] - 24.15 Short Circuit Current Isc[A] - 2.57 Net.Weight[kg] - 4.00 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.41 Temperature Coefficient Voc[[%/K] - -0.32 Temperature Coefficient Isc[[%/K] - 0.04 Maximum System Voltage[V] - 1000 V Certification - CE ROHS Advantage -A grade cell mono 50w,long last quality; -the tough, sealed, the waterproof design ensures that the panel can be used in all weather conditions. -high density,durable,Corrosion-resistant aluminum frame for extended outdoor use and will give you years and years of consistent, free power; -High efficiency 5BB solar cell; -5 years warranty more than 25 years lifespan; -Monocrystalline solar panel 50w uses high-efficiency monocrystalline A-level solar cells; -Laser cutting and welding ensure that the whole process is good; -Strict power and solar cell quality test; -Can be customized and OEM OEM; -Products have passed CE, ROHS and ISO9001 certification; Main application Monocrystalline 50w/20v is widely used in various fields of life Outdoor street light system integration Integrated monitoring and sensing system Oil, mining, etc. Marine buoy sensing equipment Marine water level monitoring equipment Outdoor camping coldchain freezing unit vehicle GPS unit attic fan
