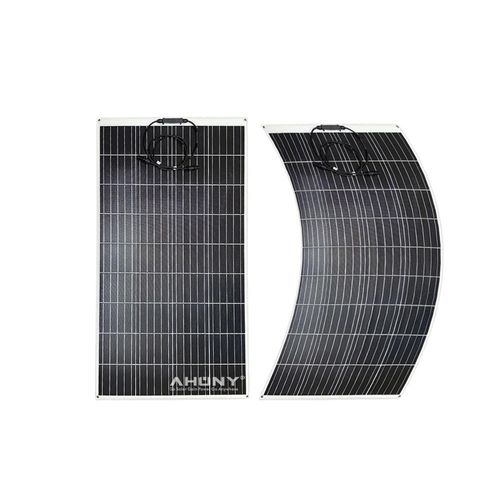

Semi-flexible solar panel eGo S150M Pro
monocrystalline siliconmarine

semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Material
monocrystalline silicon
Other characteristics
marine
Peak power (Wp)

150 W

Voltage at maximum power

20.3 V

Max power current (Imp)

7.4 A

Open circuit voltage (Voc)

24 V

Short circuit current (Isc)

8 A

Weight

3.7 kg
(8.2 lb)

Length

660 mm
(26 in)

Width

1,220 mm
(48 in)

Thickness

3 mm
(0 in)

Description

AHONY eGo S Pro series uses double sides ETFE,it uses ETFE on surface and back,it reinforced the anti-dumping tax. Higher weather resistance performance; Better UV resistance; top grade double sides flaming retardancy; can also customize bificial solar cells. This flexible solar panel widely used for boat surface,bimini roof,yacht surface,rv roof,truck surface,balcony. Cell Array[Pcs] - 4*9 Cell Efficiency - 22.50% Power tolerance[ - ±5% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.43 Temperature Coefficient Voc[[%/ - -0.34 Temperature Coefficient Isc[[%/ - 0.05 Maximum System Voltage[V] - 1000 V Maximum Reverse Current[V] - 20A Certification - CE ROHS Surface/Backsheet - ETFE/white plastic Maximum bend radius(θ) - 20° Cables and Connectors - IP67,0.9m cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Other notes - round corner R10,with eyelets Package - 1pcs/carton box
