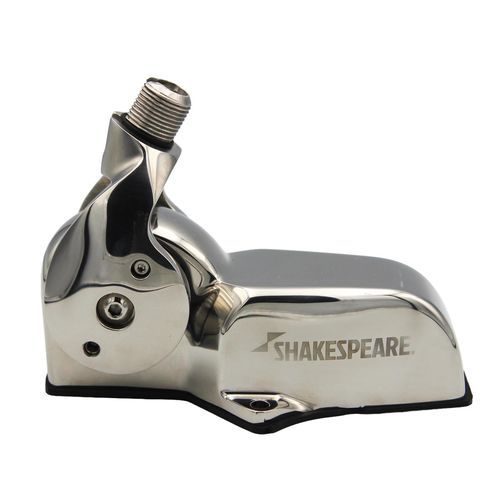

Marine antenna mount 9187-MM

boatSatcomstainless steel

Overview
Designed by Shakespeare for dependable marine performance, the Motorized Antenna Mount 9187-MM provides motorized tilt control for safe antenna deployment and stowage without manual handling. Built with marine-grade 316 stainless steel, sealed enclosures and an enclosed gear drive, the unit is engineered to operate in harsh saltwater conditions while minimizing maintenance and power consumption.

PRODUCT HIGHLIGHTS:

• Full 0° – 90° range of motion
• Corrosion-resistant 316 stainless steel
• Push-button raise & lower operation
• Enclosed gear drive for extended service life
• 10″ cable supplied for installation (switch NOT included)
• Low power draw <1.5 Amps
• Sealed for all-weather, saltwater environments
• Universal compatibility with standard 1″-14 marine antennas up to 8'
• Designed for 12V electrical systems
• FCC/CE certified

Product Data
Model No.: 9187-MM
Description: Marine Motorized Mount
UPC: 719441111526
Case Pack: 6
Country of Origin: Taiwan
HS Code: 8529.10.4040
Hazmat: No
Box Dims & Weight (Single): 6″ x 5″ x 9.5″, 5 lb.

Specifications

• Model: 9187-MM
• Range of Motion: 0° – 90°
• Material: 316 stainless steel (corrosion-resistant)
• Operation: Push-button raise & lower (10″ cable provided; switch not included)
• Drive: Enclosed gear drive for extended service life
• Power: Low power draw <1.5 Amps; compatible with 12V systems
• Environmental: Sealed construction for all-weather, saltwater use
• Compatibility: Universal with standard 1″-14 marine antennas up to 8'
• Certifications: FCC/CE certified
• UPC: 719441111526
• Case Pack: 6
• Country of Origin: Taiwan
• HS Code: 8529.10.4040
• Hazmat: No
• Box Dimensions & Weight (single): 6″ x 5″ x 9.5″, 5 lb.
