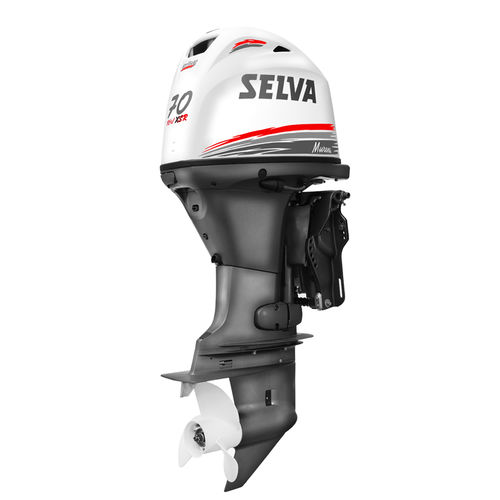

MURENA 70XSR E.F.I.

{{requestButtons}}

Characteristics

  • Market:

    boating

  • Type:

    outboard

  • Power source:

    gasoline

  • Other characteristics:

    4-stroke

  • Power:

    70 ch (70 hp)

Description

Outboard 70 Hp of 996 cc, with single-shaft distribution by 16V. It adopts a robust transmission, with a special ratio at the gearbox to have the possibilities to use large diameter propellers that allow the best boost performance. Developed by the Selva's development Department, this XSR version is refined with a very accurate setup, which gives a grit drive that is second to none.

TECHNICAL FEATURES AND EQUIPMENT
Bore x Stroke (mm)65x75
N° Cylinders4 on line
InductionElectonic Injection
StartingAutomatic
FuelPetrol (for specifications see the user manual)
Fuel tank (L)Separate 23
LubricationForced (Oil sump)
IgnitionT.C.I./Computer
Ignition timingElectronic
StartingElectric
AlternatorStandard 12V / 200W with regulator
CoolingWater cooled with pump-forced circulation
ExhaustUnder-water through propeller
Steering systemRemote with remote control box
Type of remote control box provided (for the version with remote control box)Single lever with safety switch
Trim adjustmentPower Trim/Tilt
Direction reversalMechanical A-F-R
Transmission Ratio12/28
Available shaft versionsL.
Standard propeller type3-bladed with built-in spring drive
Weight basic version (kg.)119
