Fixed window Series 1

openingtop-hungsliding

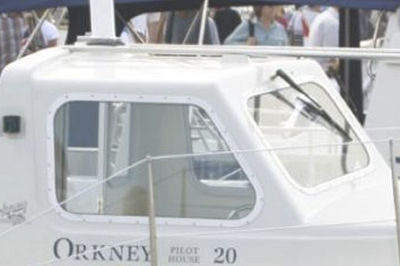

The Series 1 Through Fixed section is a lightweight extrusion, suitable for inland waterways and estuary cruisers. This section is simple, elegant and gives a stylish appearance. Solidly constructed from aluminium. It has visible fixings, so the head of the fastening is visible on the surface of the frame. Available in fixed, sliding, half drop, top hung and multi‐paned designs and a range of glazing is also on offer, this can be between 4mm to 6mm thick. Radius on this section can be as little as 50mm or mitred corners are acceptable. To complement this frame section, we offer box or flat trim. This is secured with self‐tapping screws providing a clean fresh finish internally. - Low profile flat face with rounded edges - Can be bent in the third plane if required - Glazing can be Toughened Glass, acrylic, polycarbonate (other options available) - Available in a range of window types Window Types: - FIX - TOP-HUNG - HALF-DROP - SLIDING - MULTI-PANE Glazing Options: - Single Ply (6mm-12mm) - Laminated (up to 20mm) - Double-Glazed (up to 20mm) - Low profile flat face with rounded edges - Can be bent in the third plane if required - Glazing can be Toughened Glass, acrylic, polycarbonate (other options available) - Available in a range of window types
