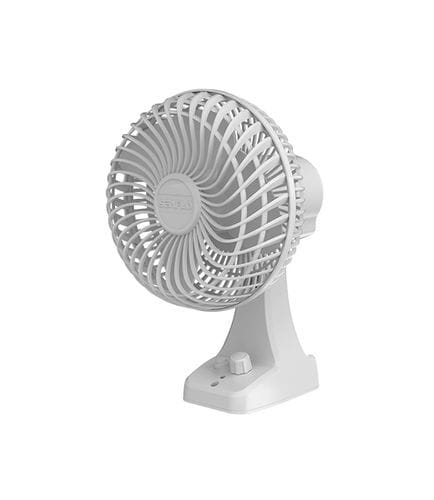

Marine ventilator SFMF1-01

for boatDCelectric

Product overview
This DC oscillating micro fan is engineered for efficient, quiet, and flexible air circulation in compact spaces. It features dual high-efficiency DC motors that provide strong airflow with micro-adjustable speed control and multi-angle oscillation. The unit includes a 7.13-inch safety grille and supports surface-mounted, wall-mounted, or ceiling-mounted installation. Suitable for boats, RVs, camping and other confined environments where compact, controllable ventilation is needed.

Short description / use cases
Portable fan, marine oscillating fan, 12V DC oscillating fan, micro fan

Key parameters
Voltage: 12V / 24V
Amp draw: 1.2A (12V) / 0.6A (24V)
Air velocity: 100–300 m/min
Air displacement: 64–193 CFM

More features & benefits

• One-touch automatic oscillation with 110° left-right sweep for broad coverage.
• Manual 120° up-and-down adjustment to target airflow direction.
• Dual motors operate independently so oscillation performance is unaffected by blade speed.
• Detachable front grille enables tool-free removal for fast, easy blade cleaning.

Standard configurations / table
Product models: SFMF1-01 (12V) / SFMF2-01 (24V)
Input voltage: 12V (SFMF1-01) / 24V (SFMF2-01)
Amp draw: 1.2A (12V) / 0.6A (24V)
Air velocity: 100–300 m/min
Air displacement: 64–193 CFM
Fuse size: 2A (12V) / 1A (24V)
Dimensions (L×W×H): 185×181×267.5 mm (7.28"×7.13"×10.53")

Specifications / technical details

• Models: SFMF1-01 (12V) and SFMF2-01 (24V)
• Input voltage: 12V / 24V
• Amp draw: 1.2A (12V) / 0.6A (24V)
• Air velocity: 100–300 m/min
• Air displacement: 64–193 CFM
• Oscillation: One-touch automatic 110° left-right
• Vertical adjustment: 120° manual up-and-down
• Motors: Dual high-efficiency DC motors, independent operation
• Safety grille size: 7.13 inches
• Front grille: Detachable for tool-free cleaning
• Mounting options: Surface-mounted, wall-mounted, ceiling-mounted
• Fuse size: 2A (12V) / 1A (24V)
• Dimensions: 185×181×267.5 mm (7.28"×7.13"×10.53")
