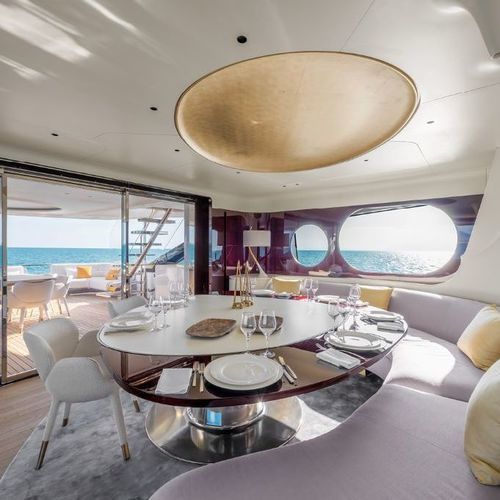

Telescopic table pedestal TB LIFTS

aluminum

Table lifting mechanism for onboard tables Thanks to the TB LIFTS lifting mechanism, it is possible to transform a low coffee table into a real dining table. In this way, the living room can be transformed into a dining room and vice versa as needed. Transformist furniture Custom solutions far from the standardization of industrial production, where each table and coffee table can be transformed and enriched with new functions. - 3-year warranty - Customizable - Home automation ready - Less than 45 dB noise - After-sales technical service Specifications - Voltage: 12-24 DC <10A, 100-240 V 50/60 Hz (optional) - Control options: Standard clean contacts, RF (optional), Home automation ready - Noise: < 45 dB - Stroke: On request - Materials: Aluminum – steel - Finish: By choice and at the customer's expense Mechanical features - Round internal profile guides with low-play sliding sliders that guarantee maximum hold. - Vertical movement on parallel axes transmitted by 12/24V DC gear motors. - Stroke adjustment by micro-switches. - Mechanical safety limit switches. Electrical features - Logical control with customizable operating software and interfaceable with major home automation systems. Equipped with a safety device to prevent overloads and polarity reversals. - Control via buttons or 2-channel remote control. - Pre-wired clean contacts for button integration. - Wiring housed in flexible sheath. - Optional electronic safety sensor. Other notes - For more information on dimensions, stroke, and capacity, consult the product sheet. Technical characteristics / specifications - Voltage: 12-24 DC <10A, 100-240 V 50/60 Hz (optional) - Control options: Standard clean contacts, RF (optional), Home automation ready - Noise: < 45 dB - Stroke: On request - Materials: Aluminum – steel - Finish: By choice and at the customer's expense - 3-year warranty - Customizable - Home automation ready - After-sales technical service
