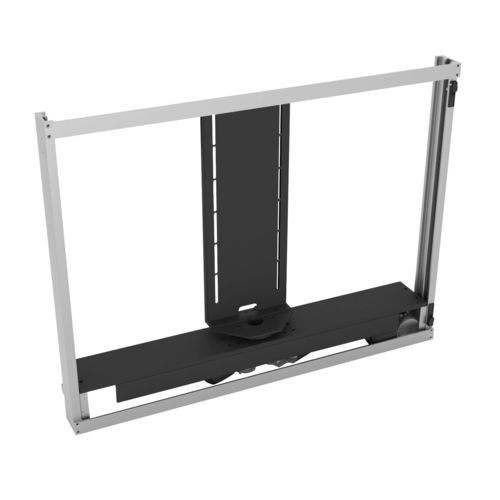

TV lift TS

mechanicalaluminum

Directional TV lift with central rotation These TV lifts are equipped with a servo-assisted system that allows the screen to be rotated. This means that the TV can be viewed from different angles, offering multiple viewing positions with a single device. Mechanisms suitable for both indoor and outdoor use. - Outdoor and indoor versions available - Top opening: Fixed or Retractable - Rotating option: - Single: in one direction (clockwise or counterclockwise only, max 330°) - Double: in both directions (max 180°) - Vertical movement - Max rotation - Central rotation - RF control (optional) Technical Specifications - Voltage: 12-24 DC <10A; 100-240 V 50/60 Hz (optional) - Control options: Clear contacts as standard, RF (optional), Home automation ready - Noise level: < 45 dB - Rotation: Available - VESA ready: Yes - Materials: Aluminium – steel - Surface finish: Matte black as standard or specific RAL on request Mechanical characteristics - Round internal profile guides with low-clearance sliding cursors that guarantee maximum hold. - Vertical movement on parallel axes transmitted by 12/24V DC gear motors. - Stroke adjustment via microswitches. - Mechanical safety limit switches. - Support brackets for TV screens designed for all models equipped with VESA mounts. Electrical characteristics - Logic control with customisable operating software that can be interfaced with the main home automation systems. - Equipped with a safety device to prevent overloads and polarity reversals. - Control via buttons or 2-channel radio remote control. - Pre-wired dry contacts for button integration. - Wiring housed in flexible sheathing. - Optional electronic safety sensor. FAQ - In which cases is it preferable to choose the cantilever (lateral) rotation version rather than the central rotation version? The TV lifts with cantilever (lateral) rotation have an off-centre pivot point, allowing for optimal viewing even when the screen is located in a corner of the room.
