TV lift Alzo Zero

mechanical

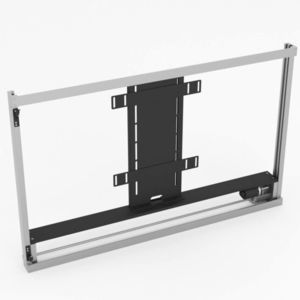

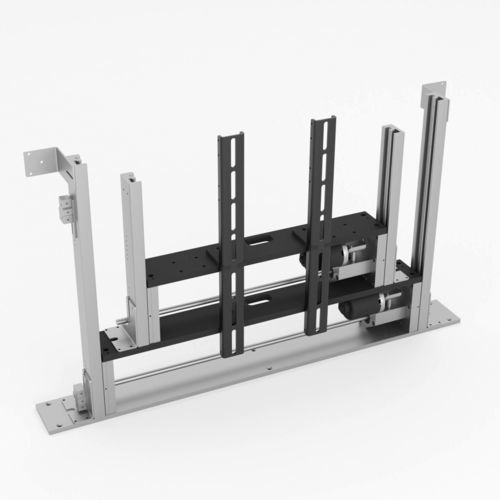

The ALZOZERO TV LIFT is a double stroke TV lift that offers the same or even greater range of movement than standard lifts, but with reduced height dimensions and only slightly greater depth. This allows installation in furniture and/or furnishings of modest height without compromising on screen size. The mechanisms are suitable for both indoor and outdoor use. - Available for both indoor and outdoor applications. - Top opening: Fixed or Flip-up options. - Optional covering carter with rounded or squared design. - Rotating option: Manual rotation version (TM version) allows the TV to be rotated using a manual system, enabling viewing from any angle. - Integrability: Compatible with home automation systems. - Double stroke mechanism for greater movement range in a compact size. - RF control available. - 5G: Ultra-slim version available. Technical Specifications: - Voltage: 12-24 DC <10A; 100-240 V 50/60 Hz (optional) - Control options: Clear contacts as standard, RF (optional), Home automation ready - Noise level: < 45 dB - Rotation: Manual rotating version available - VESA ready: Yes - Materials: Aluminium – steel - Surface finish: Matte black as standard or specific RAL on request Mechanical characteristics: - Round internal profile guides with low-clearance sliding cursors for maximum hold - Vertical movement on parallel axes transmitted by 12/24V DC gear motors - Stroke adjustment via microswitches - Mechanical safety limit switches - Support brackets for TV screens designed for all models equipped with VESA mounts Electrical characteristics: - Logic control with customizable operating software, compatible with main home automation systems - Equipped with safety device to prevent overloads and polarity reversals - Control via buttons or 2-channel radio remote control - Pre-wired dry contacts for button integration - Wiring housed in flexible sheathing - Optional electronic safety sensor Comparison with up-down series: Compared to the up-down line, the alzozero line products allow for greater TV movement range and take up less space.
