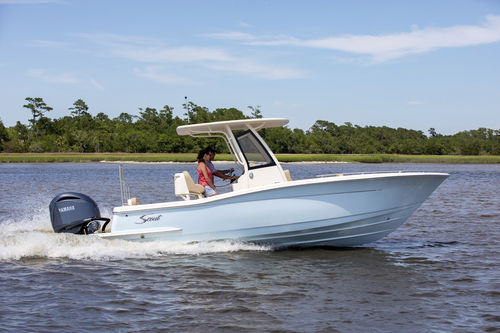

Outboard center console boat 240 XSF

for fishingoffshore11-person max.

Overview
Sleek lines and a performance-focused layout define the 240 XSF. Built on the NuV3 fuel-efficient hull, this forward-seating center-console boat is intended for open-water use while offering improved fuel economy. The design includes a longer outboard shaft to remove the transom splash well and provide a level full-access swim platform. Standard items include LED lighting (rope lighting and underside hardtop lights), fold-away stern seat, aerated transom bait well, forward lounge seating with fish/storage box and overboard pump out, and a powder-coated elite leaning post with cooler, rod and cup holders.

Key Features

• NuV3 fuel-efficient hull design for improved economy and performance
• Longer outboard shaft creating a level full-access swim platform (eliminates transom splash well)
• LED lighting package including rope lighting and underside hardtop lights
• Fold-away stern seat and forward lounge seating with fish/storage box and overboard pump out
• Aerated transom bait well
• Powder coated elite leaning post with Igloo cooler, four rod holders and three cup holders
• Multiple 12V plug and USB outlets at helm

Standard Equipment Highlights

• Full transom swim platforms with ladder
• 12V plug & (5) USB outlets at helm
• Powder coated elite leaning post (includes Igloo cooler, rod holders, cup holders)

Notes
Starting price shown includes the standard boat, standard engine and standard Seakeeper Ride. Current pricing is based on the 2026 model year; local dealer availability and additional pricing/options may vary.

Specifications

• Model: 240 XSF
• Length: 24' 4" (7.4 m)
• Beam: 8' 6" (2.6 m)
• Fuel Capacity: 100 gal (379 L)
• Max Horsepower: 300 HP (224 kW)
• Draft (approx): 19.5" (0.49 m)
• Person Capacity / Person Weight Capacity: 11 / 1,600 lbs (726 kg)
• Dry Weight (without engine, approx): 3,655 lbs (1,658 kg)
• Deadrise: 20 degrees
• Outboard Shaft: 25" (0.64 m)
• Fresh Water Capacity: 15 gal (57 L)
• Bridge Clearance (approx): 7' 2" (2.18 m)
• Port & Starboard Bow Storage Boxes: 31 gal (117 L)
• Coffin Box / Fish Box: 61 gal (231 L)
• Transom Baitwell: 15 gal (57 L)
• Console Height: 4' 2" (1.27 m)
