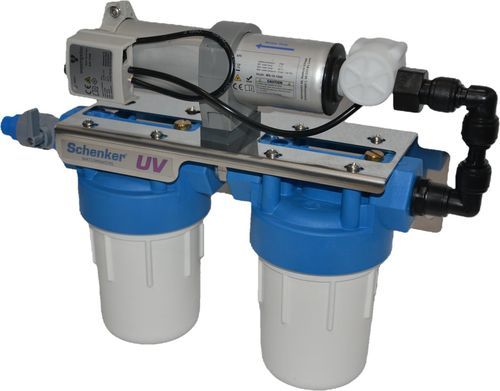

UV fresh water sterilizer Schenker UV

Product Overview
Schenker UV is based on a latest-generation ultraviolet LED lamp, combined with a pair of filters. The lamp activates only during water flow, minimizing power consumption. It reduces bacterial load by 99.9% (for a flow rate of 10 liters/min). The filters eliminate sediments and improve the water’s organoleptic qualities.
Power supply available: 12 and 24 V.
Suitable for fresh water pumps with a flow rate of up to 14 liters/min.




Overview

• Maximum flow rate: 14 l/min
• Temperature range: 0-45C
• Working pressure: 0.5 - 8 Bar
• Power consumption: 18 watts
• Power supply: 12/24 V

Key Features

• Latest-generation UV LED lamp for advanced purification
• Dual filtration system for sediment removal and improved taste
• Automatic activation during water flow for energy efficiency
• Reduces bacterial load by 99.9% (at 10 l/min)
• Suitable for fresh water pumps up to 14 l/min

Drawings and Installation

• Detailed technical drawings and typical installation schemes are available, illustrating the systems integration into marine or onboard water systems.

Technical Specifications

• Maximum flow rate: 14 l/min
• Temperature range: 0-45C
• Working pressure: 0.5 - 8 Bar
• Power consumption: 18 watts
• Power supply: 12/24 V
