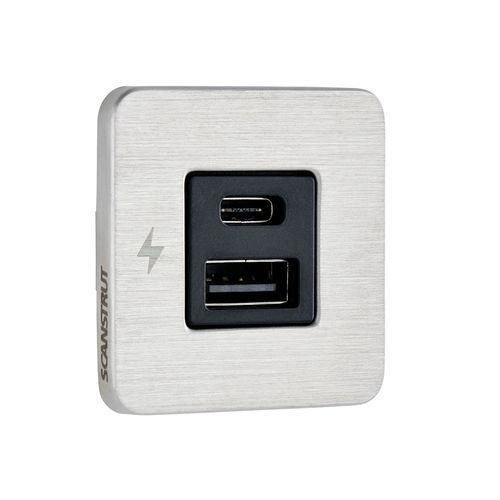

Boat USB socket SC-TILE-11

Product Overview
The Scanstrut TILE Series offers sleek, high-performance charging solutions designed specifically for marine interiors. These chargers blend seamlessly into luxury marine environments. Featuring a compact 40mm (1.57”) footprint and requiring just a 29mm (1.14”) hole saw for easy installation, the TILE Series combines functionality and style, making it the ideal choice for modernising your vessel’s interior. Enhance your boat’s space with this practical, sophisticated solution for charging your everyday devices.

• 12V & 24V
• USB-A and USB-C
• Ultra-low profile
• Front fit
• Tiny footprint
• Available in 316 stainless steel or matt black
• Conformal coated electronics, protected against moisture
• Modernise your boat's interiors

Charging Performance
Tile USB is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.
USB–C output
60W max on 24V system
36W max on 12V system
Universal
Universal fit for any USB-C connectors.
Fast charge (60W max) up to 2 devices at a time.
Important information
To maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning). Phones charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
⚠ WARNING
TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.

Electrical Information
Input Voltage | 10-32V DC (12/24V system)
Input Current | Max 6A (10A fuse recommended)
Output (Type C) | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
| 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Output (Type A) | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
| 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Standby Draw | 0.01W
Certification | CE, FCC, UKCA, C-Tick, ROHS, WEE

Caractéristiques / Spécifications techniques

• Product Series: TILE Series
• Model: SC-TILE-11
• Type: USB-A & USB-C Interior Charging Socket
• Material: 316 stainless steel or matt black
• Footprint: 40mm (1.57”)
• Installation hole: 29mm (1.14”)
• Input Voltage: 10-32V DC (12/24V system)
• Input Current: Max 6A (10A fuse recommended)
• Output (Type C): 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
• Output (Type A): 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
• Standby Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
• Interior use only
