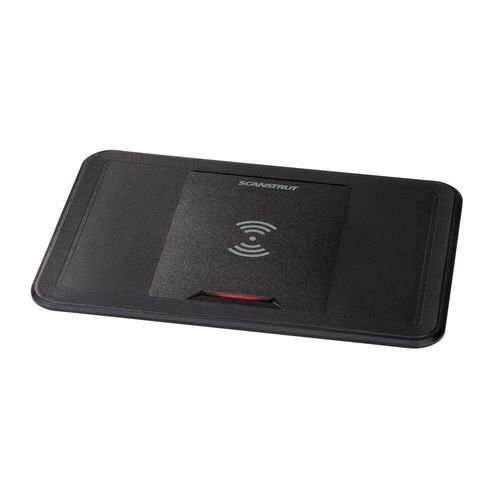

Battery charger SC-CW-2GT

for boatwaterproofwireless

Product Details
The pioneering 15W 3 coil surface charger is designed to revolutionize your charging experience. This waterproof and wireless charger can be fitted to any smooth surface, indoors or outdoors.

Three overlapping charging coils maximize performance, ensuring reliable charging from various phone placements. With a rubber edge to help keep your phone in place. This charger is tailored for those seeking uninterrupted charging during outdoor adventures, offering a reliable and efficient solution for powering devices on the go.

Intelligent charging:
Even when at sea or driving over rough terrain, the intelligent charging features are designed to mirror the movement of your phone, to ensure a constant charge, no matter the adventure or the placement of the phone on the charger.

Three-coil system:
With a three-coil system that overlaps, there is NO DEAD SPACE, resulting in the most efficient & most amount of power regardless of the phone's position.

Hot climates:
No problem. With a larger cavity the electronics are designed for thermal management by efficiently dissipating heat, this charger will perform better than other chargers in 30°C (86°F). It will also monitor your phone's heat, adjusting the power output to ensure it does not overheat, helping prolong the health of your phone!

Installation:
No sealant is required! Simply route out the required shape with our handy template and use the 3M tape on the underside of the charger to adhere to your counter's surface.

LED light system:
Designed to eliminate the need to lift your phone off the charger, the LED lights are a fast visual method for seeing when power is being delivered to your phone. Additionally, the LED on the base acts as a rear installation light, making the fitting process as quick and easy as possible.

Red light shows: Charger is in standby mode.
White light shows: Phone is charging.

Key Features

• 12/24V
• 15W Charger
• IPX6 Waterproof
• Qi compatible
• Input Voltage Range: 10-30V DC (12/24V system)
• Three overlapping charging coils maximize performance
• Reverse polarity protection
• No alignment is needed, throw your phone on the charger and your phone will always charge!
• Uninterrupted charging during outdoor adventures
• Rear installation light, for testing power & correct wiring
• LED light acts as a quick visual guide to show phone is charging
• Simple one-cut installation
• Foreign object detection
• 5-year warranty

Electrical Information
Input Voltage Range | 10-30V DC (12/24V system)
Input current max | 2A
Output Power | 15W (12V 1.25A)
Standby Power Draw | <1.2W
Certification | CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE Certified

Caractéristiques / spécifications techniques

• Model: SC-CW-2GT
• Surface mount wireless charger
• 15W output
• Qi compatible
• Three overlapping coils
• IPX6 waterproof rating
• Input voltage: 10-30V DC
• Max input current: 2A
• Output: 15W (12V 1.25A)
• Standby power draw: <1.2W
• Reverse polarity protection
• Foreign object detection
• LED status indicators
• Rear installation light
• Simple installation with 3M tape
• 5-year warranty
• Certifications: CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE
