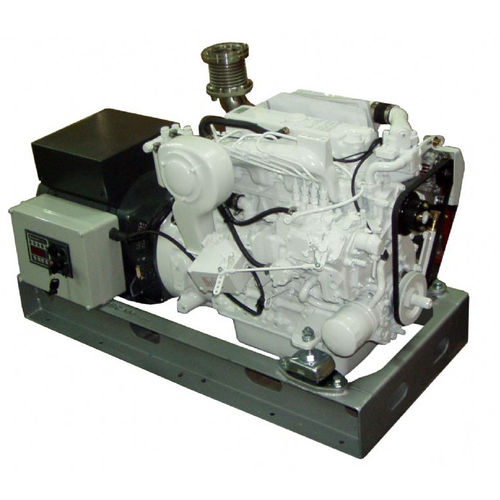

Diesel generator set SDA 20 M
for ships50 Hzmedium-speed

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for ships
Frequency
50 Hz
Options and accessories
medium-speed
Rotational speed

1,500 rpm (9,425 rad.min-1)

Output power

16 kW (21.8 hp)

Power in kVA

20 kVA (27.19 hp)

Number of cylinders

4 unit

Displacement

2,434 cm³ (82 US fl oz)

Voltage

230 V, 400 V

Net weight

380 kg (838 lb)

Description

SCAM DIESEL marine generator set was developed by carefully choosing the already reputable/affirmed marine engine SD on the KUBOTA basis and SINCRO or MECC-ALTE alternator. SCAM DIESEL marine engines were designed to require minimal and simple maintenance. All elements for regular maintenance are easily accessible. The indirect cooling system with water and oil heat exchangers maintains optimal working temperature, which prolongs the engine’s operating life. The new fuel injection system guarantees decreased fuel consumption and environment friendlier combustion. Alternators are single-bearing and marine alternators. They are rigidly coupled to the bell housing. Shaft is fixed onto the flywheel with the flexible coupling. Engine and alternator are placed flexibly on the mounting. Maximum power (flywheel) - 18,8 kW Exhaust pipe diameter - 60 mm Sea suction pipe diameter - 30 mm Fuel pipe connection diameter - 8 mm Alternator type - MECC-ALTE model ECP28-M/4 A Standard equipment - engine control panel with extension cable (digital) - flexible engine mounts - mounting
