Motion sensor Ekinox-A
rollpitchfor boats

motion sensor
motion sensor
Add to favorites
Compare this product


Measured value
motion, roll, pitch
Application domain
for boats, ships, oceanographic research, for racing sailboats
depth sounder

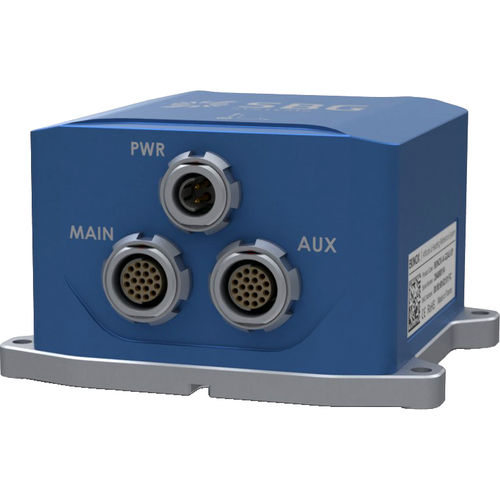

Ekinox-A is an advanced Attitude & Heading Reference System (AHRS) or MRU (Motion Reference Unit). It combines high end gyroscopes and accelerometers, and runs an enhanced Extended Kalman Filter (EKF) to provide Roll, Pitch, Heave, and Heading when connected to an external GNSS receiver. » 0.02° Roll and Pitch (RTK) » 0.05° GNSS Heading » 5 cm heave, 2.5 cm Delayed Heave » Ethernet, Serial, and CAN Interfaces KEY FEATURES » Up to 4 connected equipment » Survey Grade GNSS receiver (Ekinox2-D) » 8 GB Data Logger » IP68 Enclosure » Web Interface & Ethernet » 200 Hz Output Rate » Synchronize survey device with PTP Server» High Performance Inertial Systems » ITAR Free » Cost-effective & Robust MEMS technology » Maintenance Free
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
