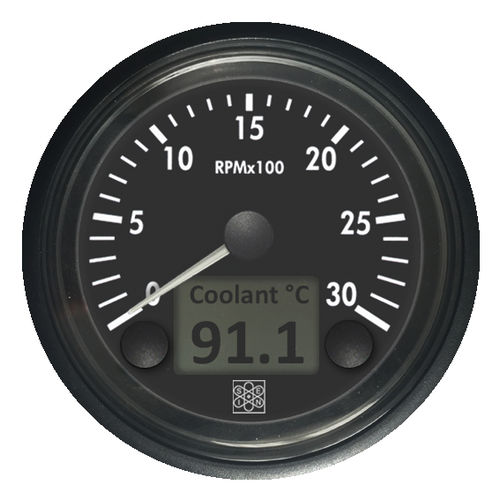

Analog tachometer Omni Link Line - GATEWAY
for boats

analog tachometer
analog tachometer
analog tachometer
analog tachometer
Add to favorites
Compare this product

Characteristics

Display
analog
Application domain
for boats

Description

The new GATEWAY multifunction tachometer has been designed to monitor engine equipped with conventional analog sensors whose measures are also converted and transmitted over the J1939 CAN Bus port of the instrument for easy display on digital panels, Omni Link repeater and NMEA2000 converters for navigation plotter. Dimension: Ø85 mm ________________________________________________________ Tecnology: Direct Digital - Stepper motor - 240° ________________________________________________________ Dial: Black or white backlighted ________________________________________________________ Bezel: RQ - Round in black plastic CHROME - Round in chrome plated brass ________________________________________________________ Display: 1,5” Graphic transflective LCD ________________________________________________________ Analog inputs: Engine water temperature Engine oil pressure Inverter oil pressure Fuel level Power supply voltage ________________________________________________________ Digital inputs: Alternator D+ Very low engine oil pressure ________________________________________________________ Frequency inputs: Engine speed ________________________________________________________ Output: 1 x Buzzer ________________________________________________________ Power supply: 12/24V ________________________________________________________ Connectors: 3 x RJ-45 ________________________________________________________ Protection grade: IP65 ________________________________________________________ Operating temperature: -20 +70 °C
