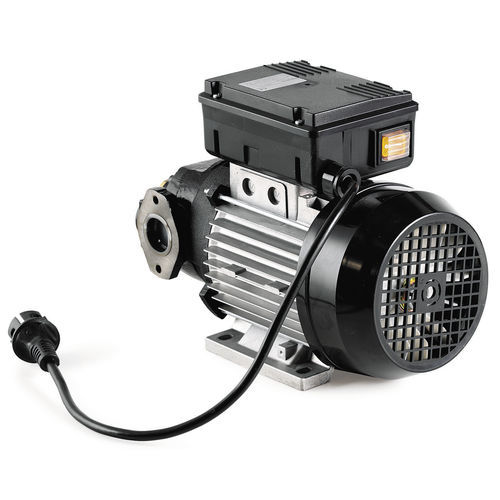

Shipyard pump 685722transfersuctionfuel
Add to favorites
Compare this product
Characteristics
- Application domain
- for shipyards
- Applications
- transfer, suction
- Fluid
- fuel
- Operation
- electric
- Voltage
- 230 V
- Flow rate
50 l/min, 70 l/min, 95 l/min
(13.21 us gal/min, 18.49 us gal/min, 25.1 us gal/min)- Power consumption
4.6 A
- Pressure
1.7 bar
(24.7 psi)
Description
Self priming pumps with self-adjustable vanes. Pump body made of cast-iron with rustproof treatment, rotor of sintered steel and vanes of acetyl resin. The pump includes a by-pass valve and a built in filter with easy access for cleaning. The pump can be mounted vertically or horizontally and has 1,8 m cable with plug. Inlet/outlet connection: 1" BSP (F) or flange coupling. Maximum suction lift: 2,5 m. Electric AC motor with IP-55 protection, allows continuous operation duty. On / off switch and fuse.
