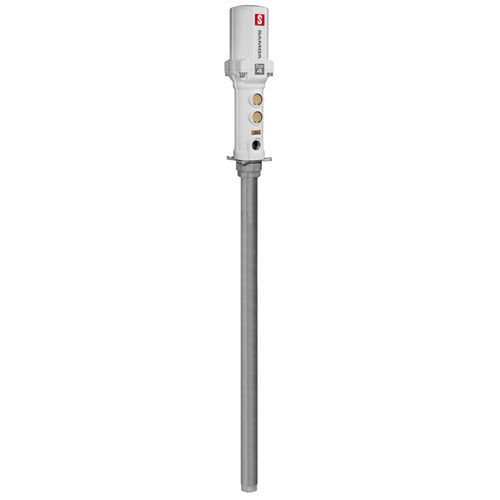

Port pump PM4 - 5:1transferoilpiston
Add to favorites
Compare this product
Characteristics
- Application domain
- port
- Applications
- transfer
- Fluid
- oil
- Technology
- piston
- Operation
- pneumatic
- Flow rate
25 l/min
(6.6 us gal/min)- Pressure
Min.: 1.5 bar
(21.8 psi)Max.: 10 bar
(145 psi)- Weight
7.4 kg
(16.3 lb)- Height
663 mm, 1,300 mm
(26 in, 51 in)
Description
PM4 series air operated piston pumps. Double action air operated medium pressure pumps for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operation. Pumps include height adjustable 2” BSP (M) bung adaptor for drum and tank bung mounting. Built in port for optional pressure relief valve (PN 609 007). Air consumption with 6 bar (87 psi) air inlet pressure and 10 l/min (2.6 gal/min). Maximum free delivery at 7 (102 psi) bar. Maximum noise level measured at 1 m (3') from the pump, 7 bar (102 psi) air pressure and free delivery.
